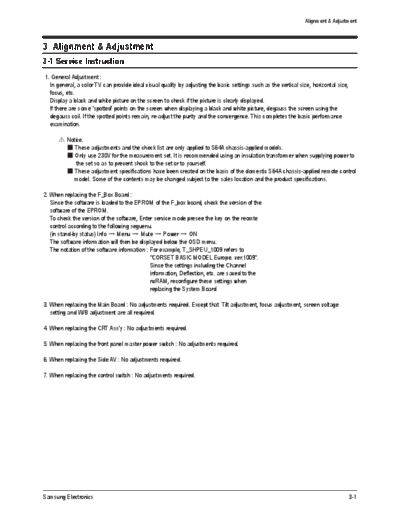

Image preview - the first page of the document
>> Download 20060428102249265_s64a_p_aadj_3_551 documenatation <<
Text preview - extract from the document
Alignment & Adjustment
3. Alignment & Adjustment
3-1 Service Instruction
1. General Adjustment :
In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,
focus, etc.
Display a black and white picture on the screen to check if the picture is clearly displayed.
If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the
degauss coil. If the spotted points remain, re-adjust the purity and the convergence. This completes the basic performance
examination.
Notice.
These adjustments and the check list are only applied to S64A chassis-applied models.
Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to
the set so as to prevent shock to the set or to yourself.
These adjustment specifications have been created on the basis of the domestic S64A chassis-applied remote control
model. Some of the contents may be changed subject to the sales location and the product specifications.
2. When replacing the F_Box Board :
Since the software is loaded to the EPROM of the F_box board, check the version of the
software of the EPROM.
To check the version of the software, Enter service mode presee the key on the reomte
control according to the following seguenu.
(in stand-by status) Info Menu Mute Power ON
The software information will then be displayed below the OSD menu.
The notation of the software information : For example, T_SHPEU_1009 refers to
"CORSET BASIC MODEL Europe. ver.1009".
Since the settings including the Channel
information, Deflection, etc. are saved to the
nvRAM, reconfigure these settings when
replacing the System Board
3. When replacing the Main Board : No adjustments required. Except that Tilt adjustment, focus adjustment, screen voltage
setting and W/B adjustment are all required.
4. When replacing the CRT Ass'y : No adjustments required.
5. When replacing the front panel master power switch : No adjustments required.
6. When replacing the Side AV : No adjustments required.
7. When replacing the control switch : No adjustments required.
Samsung Electronics 3-1
Alignment & Adjustment
3-2 How to Access Service Mode
1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)
Info Menu Mute Power On
When failing to enter Service Mode, repeat the procedure above.
2. The initial screen of Service Mode.
< Europe>
Service
Deflection
480/576P Deflect Offset
1080i Deflect Offset
4:3 Offset -- Vixlim
Video Adjust 1
Video Adjust 2
Video Adjust 3
Video Adjust 4
Video Adjust 5
Video Adjust 6
Video Adjust 7
Video Adjust 8
IDTV Video Adjust
Option(XX XX XX)
YC Delay
EEPROM
Checksum(XXXX)
Reset
T_ULTPEU_XXXX XX-XX-XX
3. Functions of the Keys within Service Mode
MENU Show all menus
/ Move the cursor to select an item.
/ Adjust the selected configuration value
3-2 Samsung Electronics
Alignment & Adjustment
3-3 Factory Data
Europe
1. Deflection Adjustment (PAL)
WS-32Z419D
No item Remark
Data
1 V Amp 18 Adjust
2 V Shift 24 Adjust
3 H EW 24 Adjust
4 H Shift 48 Adjust
5 V Linearity 6 FIX
6 Upper Linearity 0 FIX
7 Lower Linearity 1 FIX
8 V SC 4 FIX
9 H Parabola 48 Adjust
10 Upper Corner 38 Adjust
11 Lower Corner 36 Adjust
12 H Trapezium 42 Adjust
13 Bow 36 Adjust
14 Angle 34 Adjust
15 V Position 40 FIX
2. Deflection Adiustment (NTSC)
WS-32Z419D
No item Remark
Data
1 V Amp -6 Adjust
2 V Shift -3 Adjust
3 H EW 0 Adjust
4 H Shift -1 Adjust
5 V Linearity 0 Adjust
6 Upper Linearity 0 FIX
7 Lower Linearity 0 FIX
8 V SC 0 FIX
9 H Parabola 0 Adjust
10 Upper Corner 0 Adjust
11 Lower Corner 0 Adjust
12 H Trapezium 4 Adjust
13 Bow 0 Adjust
14 Angle 0 Adjust
15 V Position 0 FIX
Input NTSC signal.Then, can control this articles.
Samsung Electronics 3-3
Alignment & Adjustment
3-4 Samsung Electronics
Alignment & Adjustment
3. 4:3 Offset__Vixlim
WS-32Z419D
No item Remark
Data
1 H Para_4:3 1
2 Up_Corner_4:3 1
3 Low_Corner_4:3 1
4 Angle_4:3 0
5 Bow_4:3 1
6 H_Shift_4:3 0
7 H Para_NT_4:3 -1
8 Up_Corner_NT_4:3 0
9 Low_Corner_NT_4:3 1
10 Angle_NT_4:3 0
11 Bow_NT_4:3 0
12 H_Shift_NT_4:3 0
Input signal of each resolution, then, can control the article.
4. 480P Deflect Offset
WS-32Z419D
No item Remark
Data
1 V Amp 1 Adjust
2 V Shift 0 Adjust
3 H EW 0 Adjust
4 H Shift 3 Adjust
5 V Linearity 0 Adjust
6 Upper Linearity 0 FIX
7 Lower Linearity 0 FIX
8 V SC 0 FIX
9 H Parabola 2 Adjust
10 Upper Corner 1 Adjust
11 Lower Corner 2 Adjust
12 H Trapezium -4 Adjust
13 Bow 0 Adjust
14 Angle 0 Adjust
15 V Position 0 FIX
Samsung Electronics 3-5
Alignment & Adjustment
5. 576P Deflect Offset
WS-32Z419D
No item Remark
Data
1 V Amp 4 Adjust
2 V Shift -4 Adjust
3 H EW 0 Adjust
4 H Shift 2 Adjust
5 V Linearity 0 Adjust
6 Upper Linearity 0 FIX
7 Lower Linearity 0 FIX
8 V SC 0 FIX
9 H Parabola 2 Adjust
10 Upper Corner 0 Adjust
11 Lower Corner 1 Adjust
12 H Trapezium 2 Adjust
13 Bow 0 Adjust
14 Angle 0 Adjust
15 V Position 0 FIX
6. 720P Deflect Offset
WS-32Z419D
No item Remark
Data
1 V Amp 0 Adjust
2 V Shift 0 Adjust
3 H EW 0 Adjust
4 H Shift -2 Adjust
5 V Linearity 0 Adjust
6 Upper Linearity 0 FIX
7 Lower Linearity 0 FIX
8 V SC 0 FIX
9 H Parabola 0 Adjust
10 Upper Corner 0 Adjust
11 Lower Corner 0 Adjust
12 H Trapezium -2 Adjust
13 Bow 0 Adjust
14 Angle 0 Adjust
15 V Position 0 FIX
3-6 Samsung Electronics
Alignment & Adjustment
7. 1080i Deflect Offset
WS-32Z419D
No item Remark
Data
1 V Amp -14 Adjust
2 V Shift -5 Adjust
3 H EW 2 Adjust
4 H Shift -10 Adjust
5 V Linearity 0 Adjust
6 Upper Linearity 0 FIX
7 Lower Linearity 0 FIX
8 V SC 0 FIX
9 H Parabola -4 Adjust
10 Upper Corner -4 Adjust
11 Lower Corner -3 Adjust
12 H Trapezium 4 Adjust
13 Bow 0 Adjust
14 Angle 0 Adjust
15 V Position 0 FIX
8. Video Adjustment 1
WS-32Z419D
No item Remark
Data
1 R CutOff 18 Adjust
2 G CutOff 20 FIX
3 B CutOff 20 Adjust
4 R Drive 42 Adjust
5 G Drive 32 FIX
6 B Drive 32 Adjust
7 Sub Bright 24 Adjust
8 Sub Contrast 8 Adjust
9 Bright VCTP 140 FIX
10 Contrast VCTP 30 FIX
11 SAT-VCTP 18 FIX
12 Tint VCTP 10 FIX
13 SC_RGB_BRTADJ 128 FIX
14 SC_RGB_CONADJ 38 FIX
15 RGB U_Sat 38 FIX
16 RGB V_Sat 42 FIX
17 RGB24_BRTADJ 16 FIX
18 RGB24_CONADJ 28 FIX
19 RGB24_ USATADJ 32 FIX
20 RGB24_ VSATADJ 32 FIX
Samsung Electronics 3-7
Alignment & Adjustment
9. Video Adjustment 2
WS-32Z419D
No item Remark
Data
1 ABL Mode 3 FIX
2 Gamma 0 FIX
3 ABL TH 3 FIX
4 AKB Time 15 FIX
5 S - ABL 3 FIX
6 P - ABL 9 FIX
7 VSU 0 FIX
8 LNA EXE 3 FIX
9 H_EHT comp 3 FIX
10 V_EHT comp 5 FIX
11 PIN EHT comp 2 FIX
12 AFC EHT comp 0 FIX
13 Sync Phase 0 FIX
14 Sync Phase (480) 1 FIX
15 Sync Phase (576P) 0 FIX
16 Sync Phase (720P) 1 FIX
17 Sync Phase (1080) 0 FIX
10. Video Adjustment 3
WS-32Z419D
No item Remark
Data
1 TNR Enable 1 FIX
2 TNR Chroma 10 FIX
3 TNR Luma 7 FIX
4 LTI Enable 1 FIX
5 LTI Gain 15 FIX
6 LTI Gain x2 1 FIX
7 LTI Coring 3 FIX
8 Lmix gain 3 FIX
9 Lmix offset 12 FIX
10 Peak Center Freq 3 FIX
11 Peaking Coring 2 FIX
12 CTI BW 1 FIX
13 CTI LP 1 FIX
14 CTI Gain 5 FIX
15 CTI Coring 3 FIX
16 V Peaking 2 FIX
17 V Peak Coring gain 0 FIX
18 V Peak high gain 0 FIX
19 V Peak coring high 0 FIX
20 IF Comp Filter 0 FIX
21 DHYAPRESC 2 FIX
22 DHCAPRESC 2 FIX
23 Nega Peaking 11 FIX
24 DCE Gain 45 FIX
25 CORBP 0 FIX
3-8 Samsung Electronics
Alignment & Adjustment
11. Video Adjustment 4
WS-32Z419D
No item Remark
Data
1 SVM RW 2 FIX
2 SVM Delay 0 FIX
3 SVM Coring 2 FIX
4 SVM Gain 45 FIX
5 SVM C_Gain 0 FIX
6 OSD Contrast 32 FIX
7 OSD Bright 127 FIX
8 TTX Contrast 17 FIX
9 TTX Bright 127 FIX
10 Melody Volume 6 FIX
11 VCR Mode Cnt 30 FIX
12 SLLTHD 2 FIX
13 SLLTHDV 3 FIX
14 THRSEL 0 FIX
15 LPCDEL 0 FIX
Samsung Electronics 3-9
Alignment & Adjustment
12. Video Adjustment 5 (576i)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 5 FIX
2 HORWIDTHP_L 50 FIX
3 VERIWDTHP_H 1 FIX
4 VERIWDTHP_L 30 FIX
5 HORPOSP_H 1 FIX
6 HORPOSP_L 65 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 26 FIX
9 NAPPLIP_H 1 FIX
10 NAPPLIP_L 176 FIX
11 NALPFIP_H 0 FIX
12 NALPFIP_L 18 FIX
13 HSCPOSC_H 8 FIX
14 HSCPOSC_L 160 FIX
15 VSCPOSC_H 31 FIX
16 VSCPOSC_L 100 FIX
17 HORWIDTH_M_H 5 FIX
18 HORWIDTH_M_L 50 FIX
19 VERWIDTH_M_H 1 FIX
20 VERWIDTH_M_L 39 FIX
21 HORPOS_M_H 1 FIX
22 HORPOS_M_L 60 FIX
23 VERPOS_M_H 0 FIX
24 VERPOS_M_L 26 FIX
25 VSCPRESC_H 0 FIX
26 VSCPRESC_L 0 FIX
27 SD_BRTADJ 145
28 SD_CONADJ 46
29 SD_USATADJ 32
30 SD_VSATADJ 32
3-10 Samsung Electronics
Alignment & Adjustment
13. Video Adjustment 5 (480i)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 5 FIX
2 HORWIDTHP_L 48 FIX
3 VERIWDTHP_H 1 FIX
4 VERIWDTHP_L 246 FIX
5 HORPOSP_H 1 FIX
6 HORPOSP_L 60 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 21 FIX
9 NAPPLIP_H 1 FIX
10 NAPPLIP_L 101 FIX
11 NALPFIP_H 0 FIX
12 NALPFIP_L 16 FIX
13 HSCPOSC_H 8 FIX
14 HSCPOSC_L 158 FIX
15 VSCPOSC_H 12 FIX
16 VSCPOSC_L 0 FIX
17 HORWIDTH_M_H 5 FIX
18 HORWIDTH_M_L 48 FIX
19 VERWIDTH_M_H 1 FIX
20 VERWIDTH_M_L 241 FIX
21 HORPOS_M_H 1 FIX
22 HORPOS_M_L 48 FIX
23 VERPOS_M_H 0 FIX
24 VERPOS_M_L 24 FIX
25 VSCPRESC_H 4 FIX
26 VSCPRESC_L 0 FIX
27 SD_BRTADJ 145 FIX
28 SD_CONADJ 46 FIX
29 SD_USATADJ 32 FIX
30 SD_VSATADJ 32 FIX
Samsung Electronics 3-11
Alignment & Adjustment
14. Video Adjustment 6 (480P)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 5 FIX
2 HORWIDTHP_L 45 FIX
3 VERWIDTHP_H 1 FIX
4 VERWIDTHP_L 226 FIX
5 HORPOSP_H 1 FIX
6 HORPOSP_L 104 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 26 FIX
9 DHSCPRESC_H 11 FIX
10 DHSCPRESC_L 100 FIX
11 DNAPPLIP_H 1 FIX
12 DNAPPLIP_L 11 FIX
13 DVOFPOSC 128 FIX
14 VERPOS_S 6 FIX
15 VEROFFS_S 0 FIX
16 HORPOS_S_H 1 FIX
17 HORPOS_S_L 45 FIX
18 HPULLINMODE 0 FIX
19 DVSCPOSC_HI 64 FIX
20 DVSCPOSC_LO_H 131 FIX
21 DVSCPOSC_LO_L 17 FIX
22 DHSCPOSC_HI 14 FIX
23 DHSCPOSC_LO 255 FIX
24 HD_BRTADJ 145 FIX
25 HD_CONADJ 47 FIX
26 HD_USATADJ 38 FIX
27 HD_VSATADJ 42 FIX
3-12 Samsung Electronics
Alignment & Adjustment
15. Video Adjustment 6 (576P)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 5 FIX
2 HORWIDTHP_L 20 FIX
3 VERWIDTHP_H 2 FIX
4 VERWIDTHP_L 68 FIX
5 HORPOSP_H 1 FIX
6 HORPOSP_L 85 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 26 FIX
9 DHSCPRESC_H 11 FIX
10 DHSCPRESC_L 210 FIX
11 DNAPPLIP_H 1 FIX
12 DNAPPLIP_L 35 FIX
13 DVOFPOSC 100 FIX
14 VERPOS_S 5 FIX
15 VEROFFS_S 6 FIX
16 HORPOS_S_H 1 FIX
17 HORPOS_S_L 0 FIX
18 HPULLINMODE 0 FIX
19 DVSCPOSC_HI 64 FIX
20 DVSCPOSC_LO_H 66 FIX
21 DVSCPOSC_LO_L 203 FIX
22 DHSCPOSC_HI 14 FIX
23 DHSCPOSC_LO 201 FIX
24 HD_BRTADJ 145 FIX
25 HD_CONADJ 47 FIX
26 HD_USATADJ 38 FIX
27 HD_VSATADJ 42 FIX
Samsung Electronics 3-13
Alignment & Adjustment
16. Video Adjustment 6 (720P_50Hz)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 4 FIX
2 HORWIDTHP_L 226 FIX
3 VERWIDTHP_H 2 FIX
4 VERWIDTHP_L 125 FIX
5 HORPOSP_H 1 FIX
6 HORPOSP_L 50 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 26 FIX
9 DHSCPRESC_H 2 FIX
10 DHSCPRESC_L 30 FIX
11 DNAPPLIP_H 0 FIX
12 DNAPPLIP_L 240 FIX
13 DVOFPOSC 128 FIX
14 VERPOS_S 6 FIX
15 VEROFFS_S 0 FIX
16 HORPOS_S_H 1 FIX
17 HORPOS_S_L 0 FIX
18 HPULLINMODE 1 FIX
19 DVSCPOSC_HI 71 FIX
20 DVSCPOSC_LO_H 60 FIX
21 DVSCPOSC_LO_L 178 FIX
22 DHSCPOSC_HI 15 FIX
23 DHSCPOSC_LO 255 FIX
24 HD_BRTADJ 145 FIX
25 HD_CONADJ 49 FIX
26 HD_USATADJ 38 FIX
27 HD_VSATADJ 42 FIX
3-14 Samsung Electronics
Alignment & Adjustment
17. Video Adjustment 6 (720P_60Hz)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 4 FIX
2 HORWIDTHP_L 225 FIX
3 VERWIDTHP_H 2 FIX
4 VERWIDTHP_L 16 FIX
5 HORPOSP_H 1 FIX
6 HORPOSP_L 53 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 26 FIX
9 DHSCPRESC_H 3 FIX
10 DHSCPRESC_L 210 FIX
11 DNAPPLIP_H 0 FIX
12 DNAPPLIP_L 214 FIX
13 DVOFPOSC 128 FIX
14 VERPOS_S 24 FIX
15 VEROFFS_S 0 FIX
16 HORPOS_S_H 0 FIX
17 HORPOS_S_L 233 FIX
18 HPULLINMODE 1 FIX
19 DVSCPOSC_HI 85 FIX
20 DVSCPOSC_LO_H 70 FIX
21 DVSCPOSC_LO_L 255 FIX
22 DHSCPOSC_HI 14 FIX
23 DHSCPOSC_LO 162 FIX
24 HD_BRTADJ 145 FIX
25 HD_CONADJ 49 FIX
26 HD_USATADJ 38 FIX
27 HD_VSATADJ 42 FIX
Samsung Electronics 3-15
Alignment & Adjustment
18. Video Adjustment 6 (1080i_50Hz)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 4 FIX
2 HORWIDTHP_L 220 FIX
3 VERWIDTHP_H 2 FIX
4 VERWIDTHP_L 129 FIX
5 HORPOSP_H 0 FIX
6 HORPOSP_L 250 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 26 FIX
9 DHSCPRESC_H 15 FIX
10 DHSCPRESC_L 30 FIX
11 DNAPPLIP_H 0 FIX
12 DNAPPLIP_L 0 FIX
13 DVOFPOSC 128 FIX
14 VERPOS_S 6 FIX
15 VEROFFS_S 0 FIX
16 HORPOS_S_H 0 FIX
17 HORPOS_S_L 118 FIX
18 HPULLINMODE 1 FIX
19 DVSCPOSC_HI 53 FIX
20 DVSCPOSC_LO_H 69 FIX
21 DVSCPOSC_LO_L 255 FIX
22 DHSCPOSC_HI 13 FIX
23 DHSCPOSC_LO 246 FIX
24 HD_BRTADJ 145 FIX
25 HD_CONADJ 49 FIX
26 HD_USATADJ 38 FIX
27 HD_VSATADJ 42 FIX
3-16 Samsung Electronics
Alignment & Adjustment
19. Video Adjustment 6 (1080i_60Hz)
WS-32Z419D
No item Remark
Data
1 HORWIDTHP_H 5 FIX
2 HORWIDTHP_L 30 FIX
3 VERWIDTHP_H 2 FIX
4 VERWIDTHP_L 17 FIX
5 HORPOSP_H 0 FIX
6 HORPOSP_L 180 FIX
7 VERPOSP_H 0 FIX
8 VERPOSP_L 26 FIX
9 DHSCPRESC_H 14 FIX
10 DHSCPRESC_L 130 FIX
11 DNAPPLIP_H 0 FIX
12 DNAPPLIP_L 100 FIX
13 DVOFPOSC 128 FIX
14 VERPOS_S 6 FIX
15 VEROFFS_S 0 FIX
16 HORPOS_S_H 0 FIX
17 HORPOS_S_L 178 FIX
18 HPULLINMODE 1 FIX
19 DVSCPOSC_HI 64 FIX
20 DVSCPOSC_LO_H 0 FIX
21 DVSCPOSC_LO_L 183 FIX
22 DHSCPOSC_HI 14 FIX
23 DHSCPOSC_LO 66 FIX
24 HD_BRTADJ 147 FIX
25 HD_CONADJ 46 FIX
26 HD_USATADJ 38 FIX
27 HD_VSATADJ 42 FIX
Samsung Electronics 3-17
Alignment & Adjustment
20. Video Adjustment 7
WS-32Z419D
No item Remark
Data
1 R drive offset Warm2 3 FIX
2 B drive offset Warm2 -9 FIX
3 R cutoff offset Warm2 6 FIX
4 B cutoff offset Warm2 -11 FIX
5 R drive offset Warm1 2 FIX
6 B drive offset Warm1 -2 FIX
7 R cutoff offset Warm1 3 FIX
8 B cutoff offset Warm1 -2 FIX
9 R drive offset Normal 0 FIX
10 B drive offset Normal 0 FIX
11 R cutoff offset Normal 0 FIX
12 B cutoff offset Normal 0 FIX
13 R drive offset Cool 1 0 FIX
14 B drive offset Cool 1 4 FIX
15 R cutoff offset Cool 1 2 FIX
16 B cutoff offset Cool 1 6 FIX
17 R drive offset Cool 2 -2 FIX
18 B drive offset Cool 2 6 FIX
19 R cutoff offset Cool 2 0 FIX
20 B cutoff offset Cool 2 9 FIX
3-18 Samsung Electronics
Alignment & Adjustment
21. Video Adjustment 8
WS-32Z419D
No item Remark
Data
0 LTI Gain NTSC 15 FIX
1 Peak_f0_NTSC 2 FIX
2 Peak_cor_NTSC 2 FIX
3 CTI_gain_NTSC 5 FIX
4 Lmix gain_NTSC 3 FIX
5 Lmix offset_NT 12 FIX
6 LTI Gain AV 15 FIX
7 Peak_f0_AV 0 FIX
8 Peak_cor_AV 6 FIX
9 CTI_gain_AV 15 FIX
10 Lmix gain_AV 3 FIX
11 Lmix offset_AV 13 FIX
12 LTI Gain SD 15 FIX
13 Peak_f0_SD 0 FIX
14 Peak_cor_SD 6 FIX
15 CTI_gain_SD 0 FIX
16 Lmix gain_SD 3 FIX
17 Lmix offset_SD 13 FIX
18 LTI Gain HD 15 FIX
19 Peak_f0_ HD 0 FIX
20 Peak_cor_ HD 6 FIX
21 CTI_gain_ HD 15 FIX
22 Lmix gain_ HD 3 FIX
23 Lmix offset_ HD 13 FIX
Convert by DTV mode.then,can control this article.
Samsung Electronics 3-19
Alignment & Adjustment
22. IDTV Video Adjust
WS-32Z419D
No item Remark
Data
1 NAPPLIP_L 224 FIX
2 NAPPLIP_H 1 FIX
4 HSCPOSC_L 128 FIX
3 HSCPOSC_H 8 FIX
6 HORPOS_M_L 42 FIX
5 HORPOS_M_H 1 FIX
7 VSCPOSC_L 20 FIX
8 VSCPOSC_H 31 FIX
10 VERPOS_M_L 25 FIX
9 VERPOS_M_H 0 FIX
11 DTV_RGB_BRTADJ 136 FIX
12 DTV_RGB_CONADJ 38 FIX
13 DTV_RGB_USATADJ 38 FIX
14 DTV_RGB_VSATADJ 42 FIX
15 TUNER TOP 8 FIX
16 DTV_SAT-VP 32 FIX
17 DTV_SD YFDEL 100 FIX
18 DTV_SD_UVDEL 100 FIX
19 DTV_DCE_GAIN 5 FIX
20 DTV_V AMP_Offset 6 FIX
23. YC Delay
WS-32Z419D
No item Remark
Data
1 P.YC (AV) Delay 2 FIX
2 S.YC (AV) Delay 0 FIX
4 N.YC (AV) Delay 2 FIX
3 P.BG.YC Delay 4 FIX
6 P.DK.YC Delay 4 FIX
5 P.I.YC Delay 3 FIX
7 P.M.YC Delay 0 FIX
8 P.L.YC Delay 0 FIX
10 S.BG.YC Delay -1 FIX
9 S.DK.YC Delay -1 FIX
11 S.I.YC Delay 0 FIX
12 S.M.YC Delay 0 FIX
13 S.L.YC Delay 0 FIX
14 N.M.YC Delay 4 FIX
15 SD YFDEL 64 FIX
16 SD_UVDEL 64 FIX
17 RGB Y_Delay 118 FIX
18 RGB UV_Delay 118 FIX
19 HD_DELB 0 FIX
20 HD_DELG 0 FIX
21 HD_DELR 0 FIX
3-20 Samsung Electronics
Alignment & Adjustment
24. EEPROM
WS-32Z419D
No item Remark
Data
0 System 1 FIX
1 System_480 2 FIX
2 System_1080 3 FIX
4 Dynamic Contrast 100 FIX
3 Dynamic Brightness 40 FIX
6 Dynamic Shapness 65 FIX
5 Dynamic Color 50 FIX
7 Dynamic Tint 50 FIX
8 Dynamic Color Tone 2 FIX
10 Standard Contrast 70 FIX
9 Standard Brightness 50 FIX
11 Standard Shapness 50 FIX
12 Standard Color 45 FIX
13 Standard Tint 50 FIX
14 Standard Color Tone 2 FIX
15 Movie Contrast 50 FIX
16 Movie Brightness 50 FIX
17 Movie Shapness 40 FIX
18 Movie Color 40 FIX
19 Movie Tint 50 FIX
20 Movie Color Tone 4 FIX
21 Left _Blank 17 FIX
22 Right_Blank 25 FIX
23 Left Blanking (480) 25 FIX
24 Right Blanking (480) 25 FIX
25 Left Blanking (720) 44 FIX
26 Right Blanking (720) 25 FIX
27 Left Blanking (1080) 44 FIX
28 Right Blanking (1080) 25 FIX
29 RGB Tint 0 FIX
30 DVD Tint 0 FIX
31 Bypass Deint 0 FIX
32 SLMCSW 1 FIX
33 DCE Gain 30 FIX
34 TTX V-Position 43 FIX
35 TTX H-Position 195 FIX
36 PIP CONT 255
37 PIP-Bright 255
38 PIP-SCURVE 255
39 PIP-CTI 255
40 PIP-Sharp 255
41 PIP-Tint 255
42 - 255
43 - 255
44 - 255
Samsung Electronics 3-21
Alignment & Adjustment
WS-32Z419D
No item Remark
Data
45 - 255
46 - 255
47 - 255
48 - 255
49 - 255
50 - 255
51 - 255
52 - 255
53 - 255
54 - 255
55 - 255
56 - 255
57 - 255
58 - 255
59 - 255
60 - 255
61 - 255
62 - 255
63 - 255
64 TTX_Bow offset -1
65 TTX_H_Para offset -1
66 TTX_Up corner offset -1
67 TTX_Low corner offset -1
68 SECAM Dr 1 FIX
69 SECAM Db 2 FIX
70 50_Trap 2 FIX
71 60_Trap 2 FIX
72 LNA PLUS STEP2 14 FIX
73 LNA PLUS STEP3 14 FIX
74 LNA PLUS STEP4 14 FIX
75 LNA PLUS STEP5 14 FIX
76 LNA PLUS STEP6 14 FIX
77 H-PLL(AV) 0 FIX
78 RF color sens 210 FIX
79 AV color sens 210 FIX
80 R drive offset 1080P 7 FIX
81 G drive offset 1080P 3 FIX
82 R cutoff offset 1080P -1 FIX
83 G cutoff offset 1080P 2 FIX
84 R drive offset 1080i 0 FIX
85 G drive offset 1080i 0 FIX
86 R cutoff offset 1080i 3 FIX
87 G cutoff offset 1080i 3 FIX
88 R drive offset 720P-60HZ 0 FIX
89 G drive offset 720P-60HZ 0 FIX
3-22 Samsung Electronics
Alignment & Adjustment
WS-32Z419D
No item Remark
Data
90 R cutoff offset 720P-60HZ 3 FIX
91 G cutoff offset 720P-60HZ 3 FIX
92 R drive offset 720P-50HZ 0 FIX
93 G drive offset 720P-50HZ 0 FIX
94 R cutoff offset 720P-50HZ 3 FIX
95 G cutoff offset 720P-50HZ 3 FIX
96 R drive offset 480P 0 FIX
97 G drive offset 480P 0 FIX
98 R cutoff offset 480P 0 FIX
99 G cutoff offset 480P 0 FIX
100 R drive offset 576P 3 FIX
101 G drive offset 576P 2 FIX
102 R cutoff offset 576P -3 FIX
103 G cutoff offset 576P -1 FIX
104 R drive offset 480i 0 FIX
105 G drive offset 480i 0 FIX
106 R cutoff offset 480i 0 FIX
107 G cutoff offset 480i 0 FIX
108 R drive offset 576i 0 FIX
109 G drive offset 576i 0 FIX
110 R cutoff offset 576i 0 FIX
111 G cutoff offset 576i 0 FIX
112 H_EHT comp_720p 1
113 V_EHT comp_720p 5
114 PIN EHT comp_720p 2
115 ABL TH_1080i 2
116 Color On_NTSC 2
117 Color Killer Threshold_NTSC 210
118 ACC Limitation_NTSC 16
119 Color Killer Threshold_AV 230
245 HDMI 480P H.Shift Offset -6 FIX
246 HDMI 576P H.Shift Offset -4 FIX
247 HDMI 720P H.Shift Offset 6 FIX
248 HDMI 1080i H.Shift Offset 6 FIX
Samsung Electronics 3-23
Alignment & Adjustment
25. Option
No Option Byte Alterable Change mode WS32Z419D WS32Z408D Remark
1 System CS/CW CW CW
2 CRT WIDE / 4:3 WIDE WIDE
3 Jack 2 Scart/ 2 Scart+Component 2 Scart+Component 2 Scart
4 Auto-FM OFF/ON ON ON
5 High DEV OFF/ON OFF OFF
6 LNA OFF/ON ON ON
7 Time Sync OFF/ON OFF OFF
8 TTX OFF/ON ON ON
9 Txt Group - West EU West EU
10 OSD Language ENGLISH / CIS ENGLISH ENGLISH
11 Digital NR OFF/ON ON ON
12 Carrier Mute OFF/ON ON ON
13 Search-LNA OFF/ON ON ON
14 HDMI OFF/ON ON OFF
15 WSS Wide Fix OFF/ON OFF OFF
16 Blue Screen OFF/ON ON ON
3-24 Samsung Electronics
Alignment & Adjustment
3-4 Service Adjustment
3-4-1 Adjusting the Picture Size
Since the S62A chassis has the deflection settings data within the Factory Data, the picture size has to be adjusted when
replacing the System Board or the Deflection Board, according to the following procedures.
Display the Lion pattern. Press "Info Menu Mute Power On"
using the remote control and enter Factory Mode.
Enter Deflection Mode. Adjust the V-AMP, V-SHIFT, H-AMP and H-SHIFT items so
that the width becomes 5 and the height becomes 4.
Samsung Electronics 3-25
Alignment & Adjustment
3-4-2 Adjusting the Picture Straight Lines
Display the Cross Hatch pattern.
Adjust settings other than V-AMP, V-SHIFT, H-AMP and H-SHIFT so that straight lines are displayed without curves.
Adjust BOW and the Angle settings so that the center line Adjust the H-Parabola and H-Trapezium settings so that
becomes a straight line. the left and right lines become straight.
Adjust the Upper Corner and the Low Corner settings so that Adjust the V-Linearity and V-SC settings so that the
the end of the lines become straight. intervals of the horizontal lines become uniform.
When the adjustments are complete, display the Lion pattern and check that the picture size has not been changed.
If there is no change, finish the adjustments.
3-26 Samsung Electronics
Alignment & Adjustment
3-5 Replacements & Calibration
3-5-1 Adjusting the Focus
Since the S62A chassis has a built-in dynamic focus circuit, take care when adjusting the focus. When the CRT PCB, FBT or
CRT has been replaced, the focus has to be adjusted according to the following procedures.
1. Display the CROSS Hatch pattern.
2. Set the Screen Adjustment to "View as Standard".
3. Turn the Static Focus VR clockwise to the maximum position.
(End of clockwise direction)
4. Turn the Dynamic Focus VR counter clockwise to the maximum position.
(End of counter clockwise direction)
5. Slowly turn the Static Focus VR counter clockwise so that the center vertical line
is the most clearly displayed.
6. Slowly turn the Dynamic Focus VR clockwise so that the 2nd line is the most clearly H
displayed.
V
1
2
3
7. Check the entire screen focus and repeat steps 3 to 6, if necessary.
Samsung Electronics 3-27
Alignment & Adjustment
3-5-2 Adjusting the Screen Voltage
1. Select "Info Menu Mute Power On" to enter Service Mode.
2. Initialize all settings to the values appropriate to the corresponding model.
3. Display the Toshiba pattern.
4. Using an Oscilloscope, measure the size of RK, BK and GK to the
Pedestal Level.
5. Adjust the Screen VR of FEB so that the highest point of the Pedestal Level is 175V.
Screen Voltage Measurement Data
No Item Data Required Adjustment
The Highest Voltage among RK, GK and
1 Screen Voltage Screen Voltage
BK 190Vp-p-3V
3-28 Samsung Electronics
Alignment & Adjustment
3-5-3 Adjusting the White Balance
1. Initialize all settings to the values appropriate to the corresponding model.
2. Select "Info Menu Mute Power On" to enter Service Mode.
3. Initialize all settings to the values appropriate to the corresponding model.
4. Display the Toshiba pattern and adjust the White Balance using CA100 with the coordinates of the corresponding model.
5. Enter Video Adjust1 of Service Mode. Adjust Low/Light.
- Adjust Sub Bright to set Y.
- Adjust B Cutoff to set y.
- Adjust R Cutoff to set x.
6. Enter Video Adjust1 of Service Mode. Adjust High/Light.
- Adjust Sub Contrast to set Y.
- Adjust B Drive to set y.
- Adjust R Drive to set x.
7. Check Low/Light and readjust it if its value has been changed.
8. If you have readjusted Low/Light, readjust High/Light until the two values are identical to the coordinates of the corresponding
model.
White Balance Standard Data
No Item Data Required Adjustment
White x:282◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
