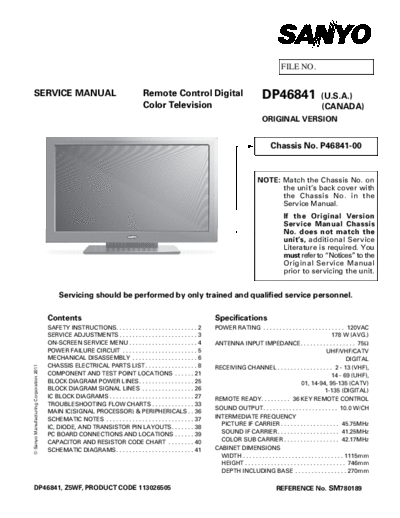

Image preview - the first page of the document



>> Download Sanyo_DP46841_P46841-00_Z5WF_[SM] documenatation <<

Text preview - extract from the document

                                                                                                                                                     FILE NO.


SERVICE MANUAL                                                                       Remote Control Digital                                DP46841                       (U.S.A.)
                                                                                     Color Television                                                                    (CANADA)
                                                                                                                                           ORIGINAL VERSION


                                                                                                                                               Chassis No. P46841-00


                                                                                                                                         NOTE: Match the Chassis No. on
                                                                                                                                               the unit's back cover with
                                                                                                                                               the Chassis No. in the
                                                                                                                                               Service Manual.
                                                                                                                                                      If the Original Version
                                                                                                                                                      Service Manual Chassis
                                                                                                                                                      No. does not match the
                                                                                                                                                      unit's, additional Service
                                                                                                                                                      Literature is required. You
                                                                                                                                                      must refer to "Notices" to the
                                                                                                                                                      Original Service Manual
                                                                                                                                                      prior to servicing the unit.


                                              Servicing should be performed by only trained and qualified service personnel.

                                         Contents                                                                   Specifications
                                         SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2     POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
                                         SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3                                                                    178 W (AVG.)
                                         ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4         ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75
                                         POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5                                                                 UHF/VHF/CATV
                                         MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6                                                                                 DIGITAL
                                         CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . 8
