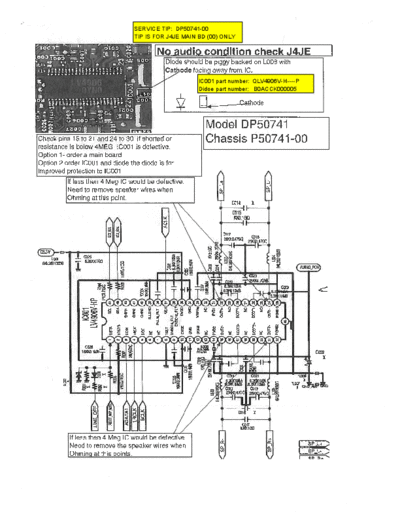

Image preview - the first page of the document
>> Download Sanyo_DP50741_P50741-00_J4JE_[SM] documenatation <<Text preview - extract from the documentSERVICE TIP: DP50741-00
TIP IS FOR J4JE MAIN BD (00) ONLY
IC001 part number: QLV4906V-H----P
Didoe part number: B0ACCK000005
FILE NO.
SERVICE MANUAL Remote Control Digital DP50741 (U.S.A.)
Color Television (CANADA)
ORIGINAL VERSION
Chassis No. P50741-00
NOTE: Match the Chassis No. on
the unit's back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit's, additional Service
Literature is required. You
must refer to "Notices" to the
Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
Contents Specifications
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2 POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3 210 W (AVG.)
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4 ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5 UHF/VHF/CATV
MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6 DIGITAL
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . 11
