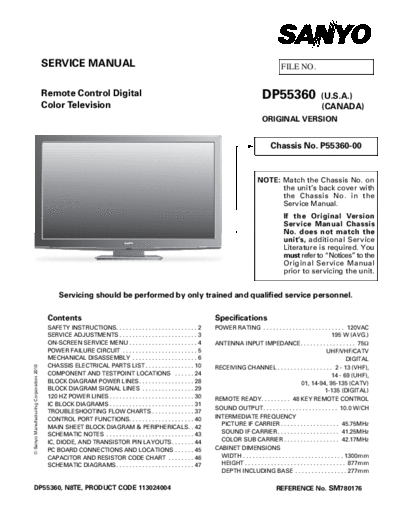

Image preview - the first page of the document



>> Download Sanyo_DP55360_P55360-00_N8TE_[SM] documenatation <<

Text preview - extract from the document

                                         SERVICE MANUAL                                                                                                FILE NO.


                                         Remote Control Digital                                                                              DP55360                       (U.S.A.)
                                         Color Television                                                                                                                  (CANADA)
                                                                                                                                             ORIGINAL VERSION


                                                                                                                                                 Chassis No. P55360-00


                                                                                                                                           NOTE: Match the Chassis No. on
                                                                                                                                                 the unit's back cover with
                                                                                                                                                 the Chassis No. in the
                                                                                                                                                 Service Manual.
                                                                                                                                                        If the Original Version
                                                                                                                                                        Service Manual Chassis
                                                                                                                                                        No. does not match the
                                                                                                                                                        unit's, additional Service
                                                                                                                                                        Literature is required. You
                                                                                                                                                        must refer to "Notices" to the
                                                                                                                                                        Original Service Manual
                                                                                                                                                        prior to servicing the unit.


                                               Servicing should be performed by only trained and qualified service personnel.

                                          Contents                                                                    Specifications
                                          SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2      POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
                                          SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3                                                                     195 W (AVG.)
                                          ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4          ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75
                                          POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5                                                                  UHF/VHF/CATV
                                          MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6                                                                                  DIGITAL
                                          CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . 10
