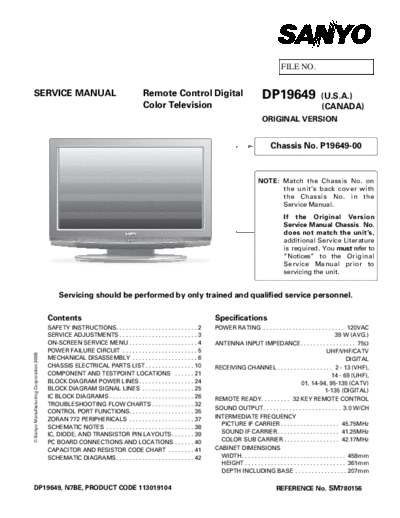

Image preview - the first page of the document



>> Download Sanyo_DP19649_P19649-00_N7BE_[SM] documenatation <<

Text preview - extract from the document

                                                                                                                                                     FILE NO.


SERVICE MANUAL                                                                       Remote Control Digital                                DP19649                       (U.S.A.)
                                                                                     Color Television                                                                    (CANADA)
                                                                                                                                           ORIGINAL VERSION


                                                                                                                                               Chassis No. P19649-00



                                                                                                                                         NOTE: Match the Chassis No. on
                                                                                                                                               the unit's back cover with
                                                                                                                                               the Chassis No. in the
                                                                                                                                               Service Manual.
                                                                                                                                                      If the Original Version
                                                                                                                                                      Service Manual Chassis No.
                                                                                                                                                      does not match the unit's,
                                                                                                                                                      additional Service Literature
                                                                                                                                                      is required. You must refer to
                                                                                                                                                      "Notices" to the Original
                                                                                                                                                      Service Manual prior to
                                                                                                                                                      servicing the unit.


                                              Servicing should be performed by only trained and qualified service personnel.

                                         Contents                                                                   Specifications
                                         SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2     POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
                                         SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3                                                                      39 W (AVG.)
                                         ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4         ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75
                                         POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5                                                                 UHF/VHF/CATV
