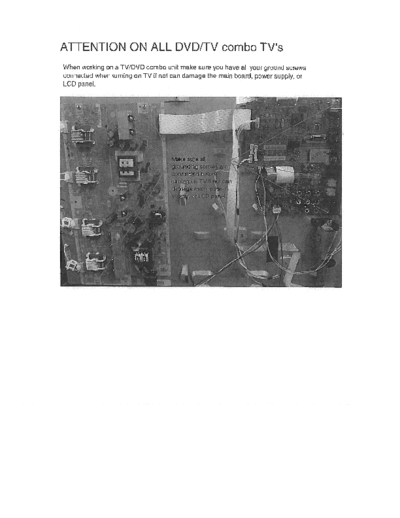

Image preview - the first page of the document
![Sanyo_DP32670_P32670-02_Z5BF_[SM]](/pics/5c25cb258e435.gif)
>> Download Sanyo_DP32670_P32670-02_Z5BF_[SM] documenatation <<
Text preview - extract from the document
SANYO Factory Code Z5BF
Service Reference NO. 614
DP32670
SERVICE MANUAL
32" HDTV LCD/DVD Combo
SUPPLEMENT
MFR'S VERSION A
This SUPPLEMENT must be used together with SERVICE MANUAL for DP32670 .
All other test and repair procedures are as shown in the ORIGINAL MANUAL.
Please file this SUPPLEMENT with the ORIGINAL VERSIONS.
Design and specifications are subject to change without notice.
MECHANICAL REPLACEMENT PARTS LIST
Z5BE Z5BF
REF. NO.
PART NO. DESCRIPTION PART NO. DESCRIPTION
102 7A702B164A BACK CABI ASS'Y 7A702B202A BACK CABI ASS'Y
102A 702WPAB643 CABINET BACK 702WPAB678 CABINET BACK
102B 761WSA0651 ANGLE MAIN 761WSAA241 ANGLE MAIN
102E ----- 800WQ0A299 FELT SHEET
102F ----- 800WQ0A253 FELT SHEET
104 7A735A044A PLATE BUTTON ASS'Y 7A735A044B PLATE BUTTON ASS'Y
104B 735WPA0983 BUTTON FRAME 735WPAB227 BUTTON FRAME
107 761WSA0813 SHIELD LVDS 761WSAA245 SHIELD LVDS
112 722529A015 SHEET RATING 722529A020 SHEET RATING
114 761WSAA201 ANGLE LCD-TOP 761WSAA246 ANGLE LCD-TOP
115 761WSAA216 ANGLE HINGE 761WSAA242 ANGLE HINGE
205 810B13080U SCREW WASHER(B) M3*8 CH DELETE
--- 792WHAA381 PACKAGE TOP 792WHAA404 PACKAGE TOP
--- 792WHAA382 PACKAGE BOTTOM 792WHAA405 PACKAGE BOTTOM
ELECTRICAL REPLACEMENT PARTS LIST
Z5BE Z5BF
REF. NO.
PART NO. DESCRIPTION PART NO. DESCRIPTION
SH8502 ----- 126D000045 TERMINAL PIN YQ-12
PCB130 A54A09N130 DVD MT PCB ASS'Y DMJ120B A54A13A130 DVD MT PCB ASS'Y DMJ120B
R3885 ----- R002T4101J RC 100 OHM 1/4W
C3860 ----- E8E2U5100D CE 10 UF 50V
PCB240 A54A09N240 POWER PCB ASS'Y CEJ555A A54A13A240 POWER PCB ASS'Y CEJ555A
R2807 ----- R808R9472J RC 4.7K OHM 1/16W
R2813 R808R9102J RC 1K OHM 1/16W R808R9472J RC 4.7K OHM 1/16W
R2826 R808R9392J RC 3.9K OHM 1/16W DELETE
C2809 ----- CS0UB0315K CC 0.1 UF 25V B
C2810 CS0UB0413K CC 0.001 UF 50V B CS0UB0315K CC 0.1 UF 25V B
IC2803 S54A09NE01 MEMORY DATA EEPROM SOIC M32P AT24C32CN-SH-T S54A13AE01 MEMORY DATA EEPROM SOIC M32P AT24C32CN-SH-T
IC2804 ----- MEMORY DATA FLASH 32M SPI 8PIN AT25DF321-SU ----- MEMORY DATA FLASH 32M SPI 8PIN AT25DF321-SU
PCBDH0 A54A09NDH0 DIGITAL PCB ASS'Y CEJ554A A54A13ADH0 DIGITAL PCB ASS'Y CEJ554A
CD2801 06EH2U1602 CORD CONNECTOR EH2U1602 06EH2U2603 CORD CONNECTOR EH2U2603
CD3803 06CP2E1407 CORD CONNECTOR CP2E1407 06CP2E2101 CORD CONNECTOR CP2E2101
! V2801 09E0132045 LCD AX080A080G 09EV132027 LCD V315B6-L01
ELECTRICAL ADJUSTMENTS
2-6: Confirmation of Fixed Value (Step No.)
Please check if the fixed values of each of the adjustment item is set correctly referring below. (TV/AV/COMPONENT/HDMI/PC/DVD/DTV)
AV COMPONENT HDMI DVI--->HDMI PC DTV
TV DVD
NO. FUNCTION CVBS Y/C 480i 480p 720p 1080i VGA 480i 480p 720p 1080i 1080p VGA XGA 640◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
