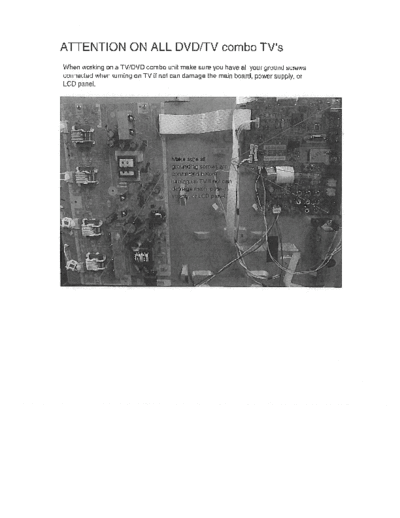

Sanyo_DP32671_P32671-00_Z6CE_[SM]


>> Download Sanyo_DP32671_P32671-00_Z6CE_[SM] documenatation <<

Text preview - extract from the document
               SANYO Factory Code Z6CE
               Service Reference NO. 343
DP32671

SERVICE MANUAL
     32" HDTV LCD/DVD Combo




                         ORIGINAL
                       MFR'S VERSION A




     Design and specifications are subject to change without notice.
CAUTION
THIS LCD COLOR TELEVISION EMPLOYS A LASER SYSTEM.

TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS SERVICE MANUAL CARE-
FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE,
CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE.
VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT
STARE INTO BEAM.

             Location of the required Marking
             The rating sheet and the safety caution are on the rear of the unit.




                                                                 CERTIFICATION: COMPLIES WITH FDA
                                                                 RADIATION PERFORMANCE STANDARDS,
                                                                 21 CFR SUBCHAPTER J.

PREPARATION OF SERVICING

The laser diode used for a pickup head may be destroyed with external static electricity.
Moreover, even if it is operating normally after repair, when static electricity discharge is received at the
time of repair, the life of the product may be shortened.
Please perform the following measure against static electricity, be careful of destruction of a laser diode
at the time of repair.
