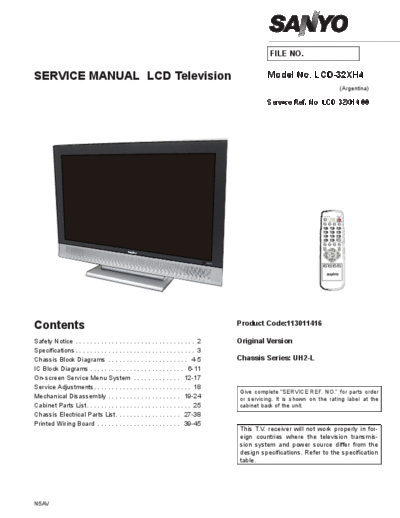

Image preview - the first page of the document
![Sanyo_LCD32XH4_[SM]](/pics/5c211a28ae7d7.gif)
>> Download Sanyo_LCD32XH4_[SM] documenatation <<
Text preview - extract from the document
FILE NO.
SERVICE MANUAL LCD Television Model No. LCD-32XH4
(Argentina)
Service Ref. No. LCD-32XH4-00
VIDEO MODE POWER
RECALL DISPLAY MUTE AUDIO MODE
SLEEP
ECO PIP CHANGE MAIN/SUB
IMAGE BACK
CH
CH
ZOOM SURROUND BASS SOUND
Contents Product Code:113011416
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Original Version
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chassis Block Diagrams . . . . . . . . . . . . . . . . . . . . . . 4-5 Chassis Series: UH2-L
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
On-screen Service Menu System . . . . . . . . . . . . . 12-17
Service Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Give complete "SERVICE REF. NO." for parts order
Mechanical Disassembly . . . . . . . . . . . . . . . . . . . . 19-24 or servicing. It is shown on the rating label at the
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 cabinet back of the unit.
Chassis Electrical Parts List. . . . . . . . . . . . . . . . . . 27-38
Printed Wiring Board . . . . . . . . . . . . . . . . . . . . . . . 39-45
This T.V. receiver will not work properly in for-
eign countries where the television transmis-
sion system and power source differ from the
design specifications. Refer to the specification
table.
N5AV
Safety Notice
Safety Precautions
The following precautions must be observed.
1: Comply with all caution and safety-related notes provided on the cabinet back, cabinet bottom, inside the
cabinet or on the chassis.
2: When replacing a chassis in the cabinet, always be certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers or shields, barriers, etc..
DO NOT OPERATE THIS TELEVISION WITHOUT THE PROTECTIVE SHIELD IN POSITION AND PROPERLY
SECURED.
3: Before replacing the cabinet cover, thoroughly inspect the inside of the cabinet to see that no stray parts or
tools have been left inside.
Before returning any television to the customer, the service personnel must be sure that it is completely safe to
operate without danger of electrical shock.
Product Safety Notice
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .
-2-
Specifications
Power Source AC 100 - 240 Volts, 50/60Hz
Receiving System PAL-N/N, PAL-M/M, NTSC-M/M
Channel Coverage ANTENNA mode
VHF: CH02 - CH13
UHF: CH14 - CH69
CATV mode
VHF band: CH01-CH13
MID band: CH14-CH22
SUPER band: CH23-CH36
HYPER band: CH37-CH64
ULTRA band: CH65-CH94 and CH100-CH125
Low MID band: CH95-CH99
Aerial Input Impedance 75
LCD Panel
Screen Size (Measured Diagonally): 32 inches
Picture Resolution: WXGA 1366 (Horiz.) x 768 (Vert.) pixels
Brightness: 500 cd/m2
Audio Output (RMS) 9W+9W
Speaker Size 6 cm x12 cm x 2 pcs
Input and Output Terminals
AV1 Input Video Input: Composite video Input (RCA Jack) x1
S-Video Input: DIN 4-pin Jack x1
Audio Input: L/R Stereo Input (RCA Jack) x 1 set
AV2 Input Video Input: Component Y (combined with composite video input), CB, CR Input (RCA Jack) x1 set
Audio: L/R Stereo Input (RCA Jack) x 1 set
HDMI Input HDMI Terminal 19 pin x1
PC Input Video Input: D-SUB 15 pin x1
Audio Input: Mini stereo jack x 1
Output Terminals Video Monitor Output: RCA jack x 1
Audio Monitor Output: L/R Stereo Output (RCA jack) x 1 set
Headphone Jack : Mini stereo jack x1
Dimensions 818 X 624 X 270 mm (including stand)
Weight <14.3kg (Including Stand)
Environmental Considerations
