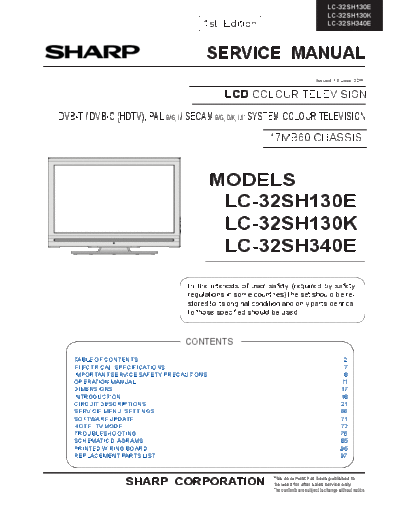

Image preview - the first page of the document
![Sharp_LC-32SH130E_LC-32SH130K_LC-32SH340E_[SM]](/pics/5c26fbcad7fdf.gif)
>> Download Sharp_LC-32SH130E_LC-32SH130K_LC-32SH340E_[SM] documenatation <<
Text preview - extract from the document
LC-32SH130E
LC-32SH130K
1st Edition LC-32SH340E
50mm
SERVICE MANUAL
40mm
Issued: 16 June 2011
LCD COLOUR TELEVISION
31.5mm
DVB-T / DVB-C (HDTV), PAL B/G, I / SECAM B/G, D/K, L/L' SYSTEM COLOUR TELEVISION
17MB60 CHASSIS
25mm
20mm
MODELS
LC-32SH130E
LC-32SH130K
LC-32SH340E
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identical
to those specified should be used.
CONTENTS
TABLE OF CONTENTS........................................................................................................................ 2
ELECTRICAL SPECIFICATIONS .......................................................................................................7
IMPORTANT SERVICE SAFETY PRECAUTIONS................................................................................. 8
OPERATION MANUAL ........................................................................................................................... 11
DIMENSIONS ..................................................................................................................................... 17
INTRODUCTION................................................................................................................................... 18
CIRCUIT DESCRIPTIONS .................................................................................................................. 21
SERVICE MENU SETTINGS .......................................................................................................... 66
SOFTWARE UPDATE ............................................................................................................................ 71
HOTEL TV MODE...................................................................................................................................72
TROUBLESHOOTING................................................................................................................... 76
SCHEMATIC DIAGRAMS...................................................................................................................... 85
PRINTED WIRING BOARD.....................................................................................................................95
REPLACEMENT PARTS LIST ............................................................................................................97
SHARP CORPORATION This document has been published to
be used for after sales service only.
The contents are subject to change without notice.
1
LC-32SH130E
LC-32SH130K
LC-32SH340E
TABLE OF CONTENTS
i SPECIFICATIONS.............................................................................................. 7
ii IMPORTANT SERVICE SAFETY PRECAUTIONS ............................................................. 8
iii OPERATION MANUAL ........................................................................................ 11
TABLE OF CONTENTS
iv DIMENSIONS .................................................................................................. 17
1. 18
INTRODUCTION......................................................................................................7
1.1. General Block Diagram .................................................................................. 8
19
1.2. 20
MB60 Placement of Blocks .............................................................................. 9
2. 21
TUNER(TU102) .................................................................................................... 10
2.1. 22
General description of Samsung DTOS403LH122X: ................................................ 11
2.2. 22
Features of DTOS403LH122X: ........................................................................ 11
2.3. 23
Pinning:.................................................................................................. 12
3. 24
