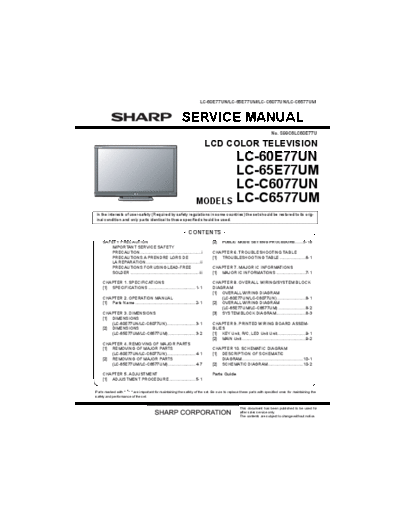

Image preview - the first page of the document
![Sharp_LC-60E77_LC-65E77_[SM]](/pics/5c26fcc945059.gif)
>> Download Sharp_LC-60E77_LC-65E77_[SM] documenatation <<
Text preview - extract from the document
LC-60E77UN/LC-65E77UM/LC-C6077UN/LC-C6577UM
SERVICE MANUAL
No. S99C6LC60E77U
LCD COLOR TELEVISION
LC-60E77UN
LC-65E77UM
LC-C6077UN
MODELS LC-C6577UM
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
CONTENTS
SAFETY PRECAUTION [2] PUBLIC MODE SETTING PROCEDURE.......5-18
IMPORTANT SERVICE SAFETY
PRECAUTION....................................................i
. CHAPTER 6. TROUBLESHOOTING TABLE
PRECAUTIONS A PRENDRE LORS DE [1] TROUBLESHOOTING TABLE ......................6-1
LA REPARATION ..............................................ii
.
PRECAUTIONS FOR USING LEAD-FREE CHAPTER 7. MAJOR IC INFORMATIONS
SOLDER .......................................................... iii
. [1] MAJOR IC INFORMATIONS .........................7-1
CHAPTER 1. SPECIFICATIONS CHAPTER 8. OVERALL WIRING/SYSTEM BLOCK
[1] SPECIFICATIONS ........................................ 1-1
. DIAGRAM
[1] OVERALL WIRING DIAGRAM
CHAPTER 2. OPERATION MANUAL (LC-60E77UN/LC-C6077UN) ........................8-1
[1] Parts Name ................................................... 2-1
. [2] OVERALL WIRING DIAGRAM
(LC-65E77UM/LC-C6577UM) .......................8-2
CHAPTER 3. DIMENSIONS [3] SYSTEM BLOCK DIAGRAM .........................8-3
[1] DIMENSIONS
(LC-60E77UN/LC-C6077UN)........................ 3-1
. CHAPTER 9. PRINTED WIRING BOARD ASSEM-
[2] DIMENSIONS BLIES
(LC-65E77UM/LC-C6577UM) ....................... 3-2
. [1] KEY Unit, R/C, LED Unit Unit ........................9-1
[2] MAIN Unit ......................................................9-2
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS CHAPTER 10. SCHEMATIC DIAGRAM
(LC-60E77UN/LC-C6077UN)........................ 4-1
. [1] DESCRIPTION OF SCHEMATIC
[2] REMOVING OF MAJOR PARTS DIAGRAM....................................................10-1
(LC-65E77UM/LC-C6577UM) ....................... 4-7
. [2] SCHEMATIC DIAGRAM ..............................10-2
CHAPTER 5. ADJUSTMENT Parts Guide
[1] ADJUSTMENT PROCEDURE ...................... 5-1
.
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
LC-60E77UN/LC-65E77UM/LC-C6077UN/LC-C6577UM
LC60E77UN
SAFETY PRECAUTION Service Manual
IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
