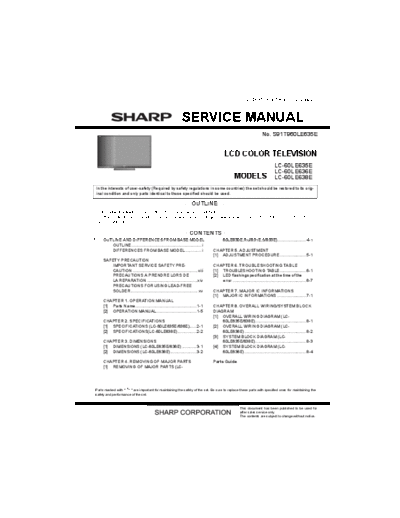

Image preview - the first page of the document
![Sharp_LC-60LE635E_LC-60LE636E_LC-60LE638E_[SM]](/pics/5c26fcd0bed8e.gif)
>> Download Sharp_LC-60LE635E_LC-60LE636E_LC-60LE638E_[SM] documenatation <<
Text preview - extract from the document
TopPage
LC-60LE635E/636E/638E (1st Edition)
SERVICE MANUAL
No. S91T960LE635E
LCD COLOR TELEVISION
LC-60LE635E
LC-60LE636E
MODELS LC-60LE638E
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
OUTLINE
This model is based on the LC-60LE830E and partially modified.
For the contents not covered in this Service Manual, accordingly, please refer to the LC-60LE830E (S81T252LE830E)
Service Manual.
CONTENTS
OUTLINE AND DIFFERENCES FROM BASE MODEL 60LE830E,RU/831E,S/833E)........................ 4-1
.
OUTLINE ........................................................... i
DIFFERENCES FROM BASE MODEL ............. i CHAPTER 5. ADJUSTMENT
[1] ADJUSTMENT PROCEDURE...................... 5-1
.
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRE- CHAPTER 6. TROUBLESHOOTING TABLE
CAUTION .......................................................xiii [1] TROUBLESHOOTING TABLE...................... 6-1 .
PRECAUTIONS A PRENDRE LORS DE [2] LED flashing specification at the time of the
LA REPARATION ...........................................xiv error .............................................................. 6-7
.
PRECAUTIONS FOR USING LEAD-FREE
SOLDER......................................................... xv CHAPTER 7. MAJOR IC INFORMATIONS
[1] MAJOR IC INFORMATIONS ........................ 7-1
.
CHAPTER 1. OPERATION MANUAL
[1] Parts Name....................................................1-1 CHAPTER 8. OVERALL WIRING/SYSTEM BLOCK
[2] OPERATION MANUAL..................................1-5 DIAGRAM
[1] OVERALL WIRING DIAGRAM (LC-
CHAPTER 2. SPECIFICATIONS 60LE635E/638E)........................................... 8-1
.
[1] SPECIFICATIONS (LC-60LE635E/636E) ........2-1 [2] OVERALL WIRING DIAGRAM (LC-
[2] SPECIFICATIONS(LC-60LE638E)................2-2 60LE636E) .................................................... 8-2
.
[3] SYSTEM BLOCK DIAGRAM (LC-
CHAPTER 3. DIMENSIONS 60LE635E/638E)........................................... 8-3
.
[1] DIMENSIONS (LC-60LE635E/636E) ............3-1 [4] SYSTEM BLOCK DIAGRAM (LC-
[2] DIMENSIONS (LC-60LE638E)......................3-2 60LE636E) .................................................... 8-4
.
CHAPTER 4. REMOVING OF MAJOR PARTS Parts Guide
[1] REMOVING OF MAJOR PARTS (LC-
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
LC-60LE635E/636E/638E (1st Edition)
LC60LE635E
OUTLINE AND DIFFERENCES FROM BASE MODEL Manual
Service
OUTLINE
This manual has been issued to cover the modifications of some parts in reference to the redesigned LCD panel module of Model LC-60LE830E.
In this Service Manual, the modifications from Model LC-60LE830E (No. S81T252LE830E) are focused on. For what is left out herein, please refer
back to the Service Manual of the previous model LC-60LE830E (No. S81T252LE830E).
DIFFERENCES FROM BASE MODEL
Ref Description LC-60LE830E LC-60LE635E LC-60LE638E LC-60LE636E Inter- Note
No. (S81T252LE830E) (S91T960LE635E) (S91T960LE635E) (S91T960LE635E) chang
eabil-
ity
PRINTED WIRING BOARD ASSEMBLIES
N MAIN Unit DKEYDF733FM51 DUNTKF733FM55 DUNTKF733FM56 DUNTKF733FM57 D Chanded
No
N R/C OPC Unit DUNTKF494FM02 -
Changed
N ICON Unit DUNTKF770FM51 DUNTKF770FM53 DUNTKF770FM53 DUNTKF770FM53 D Chanded
RUNTKA869WJQ
N TOUCH SENSOR Unit - - - - Delete
Z
RUNTKA819WJQ
N 3D IR TRANSMITTER Unit - - - - Delete
Z
N POWER Unit RUNTKA799WJN1 RUNTKA847WJN1 RUNTKA847WJN1 RUNTKA847WJN1 D Chanded
N LCD CONTRL Unit RUNTK4909TPYN RUNTK4910TPZT RUNTK4910TPZT RUNTK4910TPZT D Chanded
N KEY Unit - DUNTKF800FM52 DUNTKF800FM52 DUNTKF800FM52 - Add
LCD Panel Module
R1LK600D3GW4B R1LK600D3GW7C R1LK600D3GW7C R1LK600D3GW7C
N 60" LCD Panel Module Unit D Chanded
H H H H
MAIN Unit
Delete
C11 Capacitor 8200p 25V VCKYCZ1EB822K
- - (636E
01 Ceramic Y
Only)
Delete
C11 Capacitor 0.010 25V VCKYCZ1EB103K
- - (636E
02 Ceramic Y
Only)
Delete
C11 RC-
Capacitor - - (636E
04 KZA621WJQZY
Only)
Delete
C11 VCCCCZ1HH330J
Capacitor 33p 50V Ceramic - - (636E
06 Y
Only)
Delete
C11 Capacitor 68 25V Electro- VCEASH1EN686M
- - (636E
07 lytic Y
Only)
Delete
C11 VCCCCZ1HH330J
Capacitor 33p 50V Ceramic - - (636E
08 Y
Only)
Delete
C11 Capacitor 68 25V Electro- VCEASH1EN686M
- - (636E
11 lytic Y
Only)
Delete
C11 RC-
Capacitor - - (636E
12 KZA237WJZZY
Only)
Delete
C11 RC-
Capacitor - - (636E
13 KZA709WJQZY
Only)
Delete
C11 RC-
Capacitor - - (636E
14 KZA621WJQZY
Only)
Delete
C11 RC-
Capacitor - - (636E
15 KZA383WJZZY
Only)
Delete
C11 RC-
Capacitor - - (636E
16 KZA709WJQZY
Only)
