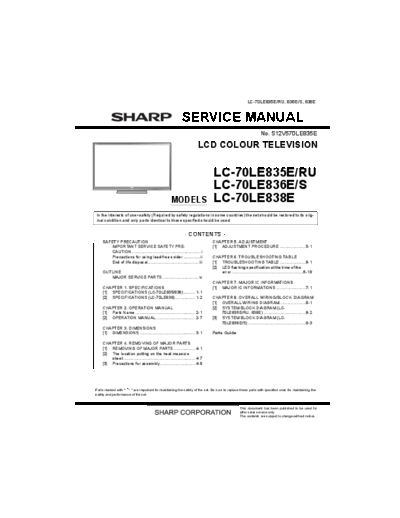

Image preview - the first page of the document
>> Download Sharp_LC-70LE835E_LC-70LE836E_LC-70LE838E_[SM] documenatation <<Text preview - extract from the documentTopPage
LC-70LE835E/RU, 836E/S, 838E
SERVICE MANUAL
No. S12V570LE835E
LCD COLOUR TELEVISION
LC-70LE835E/RU
LC-70LE836E/S
MODELS LC-70LE838E
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
CONTENTS
SAFETY PRECAUTION CHAPTER 5. ADJUSTMENT
IMPORTANT SERVICE SAFETY PRE- [1] ADJUSTMENT PROCEDURE ......................5-1
CAUTION ...........................................................i
.
Precautions for using lead-free solder ..............ii
. CHAPTER 6. TROUBLESHOOTING TABLE
End of life disposal ........................................... iii
. [1] TROUBLESHOOTING TABLE ......................6-1
[2] LED flashing specification at the time of the
OUTLINE error .............................................................6-18
MAJOR SERVICE PARTS ...............................iv
.
CHAPTER 7. MAJOR IC INFORMATIONS
CHAPTER 1. SPECIFICATIONS [1] MAJOR IC INFORMATIONS .........................7-1
[1] SPECIFICATIONS (LC-70LE835/836).......... 1-1
.
[2] SPECIFICATIONS (LC-70LE838)................. 1-2
. CHAPTER 8. OVERALL WIRING/BLOCK DIAGRAM
[1] OVERALL WIRING DIAGRAM ......................8-1
CHAPTER 2. OPERATION MANUAL [2] SYSTEM BLOCK DIAGRAM (LC-
[1] Parts Name ................................................... 2-1
. 70LE835E/RU, 838E) ....................................8-2
[2] OPERATION MANUAL ................................. 2-7. [3] SYSTEM BLOCK DIAGRAM (LC-
70LE836E/S) .................................................8-3
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS ............................................... 3-1
. Parts Guide
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS .................. 4-1 .
[2] The location putting on the heat measure
sheet ............................................................. 4-7
.
[3] Precautions for assembly.............................. 4-8 .
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
LC-70LE835E/RU, 836E/S, 838E
LC70LE835E
SAFETY PRECAUTION Service Manual
IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
WARNING
