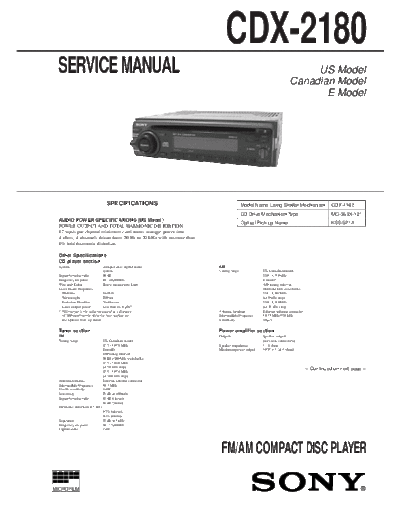

Image preview - the first page of the document
CDX-2180


>> Download CDX-2180 documenatation <<

Text preview - extract from the document
                                                                           CDX-2180
 SERVICE MANUAL                                                                                                        US Model
                                                                                                                  Canadian Model
                                                                                                                         E Model




                                   SPECIFICATIONS                                     Model Name Using Similar Mechanism                CDX-4180
                                                                                      CD Drive Mechanism Type                           MG-363X-121
  AUDIO POWER SPECIFICATIONS (US Model)
                                                                                      Optical Pick-up Name                              KSS-521A
  POWER OUTPUT AND TOTAL HARMONIC DISTORTION
  17 watts per channel minimum continuous average power into
  4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
  1% total harmonic distortion.

  Other Specifications
  CD player section
  System                         Compact disc digital audio            AM
                                 system                                Tuning range             US, Canadian model:
  Signal-to-noise ratio          90 dB                                                          530 - 1,710 kHz
  Frequency response             10 - 20,000 Hz                                                 E model:
  Wow and flutter                Below measurable limit                                         AM tuning interval:
  Laser Diode Properties                                                                        9 kHz/10 kHz switchable
    Material                    GaAlAs                                                          531 - 1,602 kHz
    Wavelength                  780 nm                                                          (at 9 kHz step)
    Emission Duration           Continuous                                                      530 - 1,710 kHz
    Laser output power          Less than 44.6
