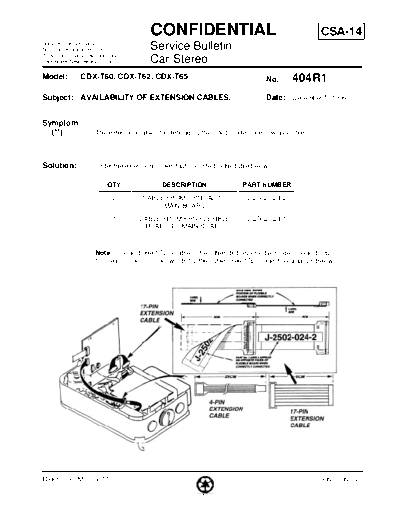

Image preview - the first page of the document
>> Download CAR0404 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSA-14
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 Car Stereo
Model: CDX-T60, CDX-T62, CDX-T65 No. 404R1
Subject: AVAILABILITY OF EXTENSION CABLES. Date: December 5, 1996
Symptom:
(**) The extension cables for debugging the listed models are now available.
Solution: Order the extension cables that are listed in the table below.
QTY DESCRIPTION PART NUMBER
-2- CABLE FROM OPTICAL TO J-2502-024-2
MAIN BOARD
-1- CABLE FROM EHS FLEXIBLE J-2502-024-1
BOARD TO MAIN BOARD
Note: Connect one 17 pin cable to the other ,but reverse the solder connections
from each other. In other words flip the cable. (see 17p connection diagram below).
Reference: ME-96017 PRINTED IN USA
PRINTED ON RECYCLED PAPER
