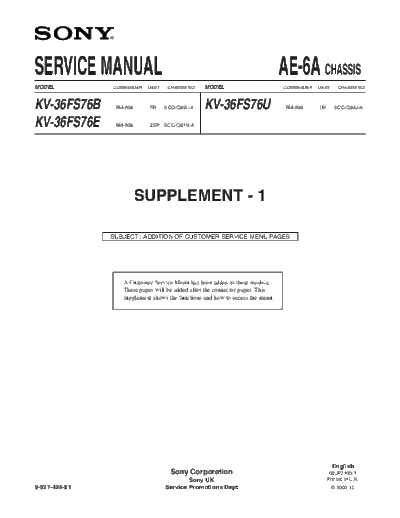

Image preview - the first page of the document



>> Download Sony_KV-36FS76B_KV-36FS76E_supplement_[SM] documenatation <<

Text preview - extract from the document

               R




SERVICE MANUAL                                                                    AE-6A CHASSIS
MODEL          COMMANDER      DEST    CHASSIS NO.     MODEL                       COMMANDER   DEST      CHASSIS NO.



KV-36FS76B         RM-938      FR    SCC-Q83L-A       KV-36FS76U                   RM-938     UK      SCC-Q84J-A


KV-36FS76E         RM-938      ESP   SCC-Q81N-A




                            SUPPLEMENT - 1

               SUBJECT : ADDITION OF CUSTOMER SERVICE MENU PAGES




                     A Customer Service Menu has been added to these models.
                     These pages will be added after the connector pages. This
                     supplement shows the functions and how to access the menu.




                                                                                                     English
                                       Sony Corporation                                             02JP7100-1
                                             Sony UK                                               Printed in U.K.
9-927-424-81                         Service Promotions Dept
