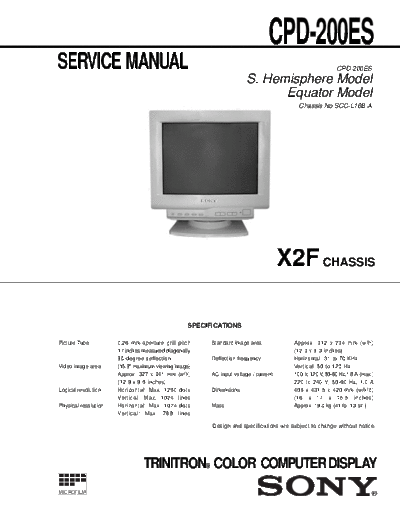

Image preview - the first page of the document
SONY CPD-200ES chassis X2F


>> Download SONY CPD-200ES chassis X2F documenatation <<

Text preview - extract from the document
                                                                                                CPD-200ES

                                                                               CPD-200ES
SERVICE MANUAL                                                                                          CPD-200ES
                                                                     S. Hemisphere Model
                                                                           Equator Model
                                                                                        Chassis No.SCC-L16B-A




                                                                                    X2F CHASSIS

                                                 SPECIFICATIONS

Picture Tube          0.26 mm aperture grill pitch     Standard image area            Approx. 312 x 234 mm (w/h)
                      17 inches measured diagonally                                   (12.3 x 9.3 inches)
                      90-degree deflection             Deflection frequency           Horizontal: 31 to 70 KHz
Video image area      (15.9" maximum viewing image)                                   Vertical: 50 to 120 Hz
                      Approx. 327 x 241 mm (w/h)       AC input voltage / current     100 to 120 V, 50-60 Hz,1.8 A (max.)
                      (12.9 x 9.5 inches)                                             220 to 240 V, 50-60 Hz, 1.0 A
Logical resolution    Horizontal: Max. 1280 dots       Dimensions                     406 x 431.5 x 420 mm (w/h/d)
                      Vertical: Max. 1024 lines                                       (16 x 17 x 16.5 inches)
Physical resolution   Horizontal: Max. 1024 dots       Mass                           Approx. 19.0 kg (41 lb. 13 oz.)
                      Vertical: Max. 768 lines

                                                       Design and specifications are subject to change without notice.
