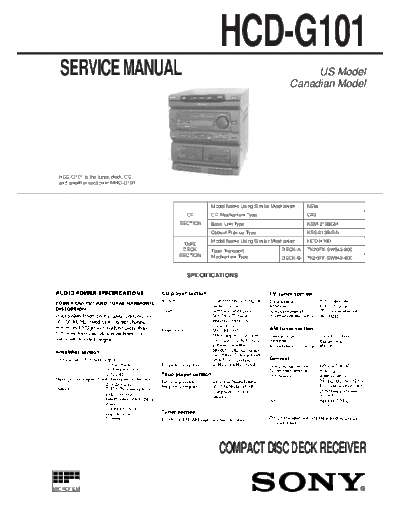

Image preview - the first page of the document
SONY HCD-G101_Part_1


>> Download SONY HCD-G101_Part_1 documenatation <<

Text preview - extract from the document
                                                     HCD-G101
  SERVICE MANUAL                                                                      US Model
                                                                                 Canadian Model




 HCD-G101 is the tuner, deck, CD
 and amplifier section in MHC-G101.



                                                  Model Name Using Similar Mechanism   NEW
                                        CD        CD Mechanism Type                    CX3
                                      SECTION     Base Unit Type                       KSM-213BCM
                                                  Optical Pick-up Type                 KSS-213B/S-N
                                                  Model Name Using Similar Mechanism   HCD-H100
                                       TAPE
                                       DECK       Tape Transport              DECK-A   TK20FX-SW943-800
                                      SECTION     Mechanism Type              DECK-B   TK20FX-SW943-800


                                        SPECIFICATIONS




                                                     COMPACT DISC DECK RECEIVER

MICROFILM



                                                --1--
                                                                                          SERVICING NOTE
 CAUTION
                                                                            NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
 Use of controls or adjustments or performance of procedures
                                                                            OR BASE UNIT
 other than those specified herein may result in hazardous ra-
 diation exposure.                                                      The laser diode in the optical pick-up block may suffer electrostatic
                                                                        break-down because of the potential difference generated by the
Notes on chip component replacement                                     charged electrostatic load, etc. on clothing and the human body.
