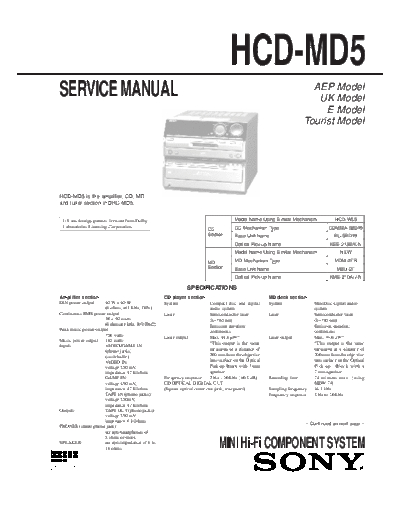

Image preview - the first page of the document
SONY HCD-MD5 with suppl.    9960713-82


>> Download SONY HCD-MD5 with suppl. 9960713-82 documenatation <<

Text preview - extract from the document
                                                                                      HCD-MD5
  SERVICE MANUAL                                                                                                            AEP Model
                                                                                                                             UK Model
                                                                                                                               E Model
                                                                                                                          Tourist Model




  HCD-MD5 is the amplifier, CD, MD
  and tuner section in DHC-MD5.


   US and foreign patents licensed from Dolby                                           Model Name Using Similar Mechanism               HCD-W55
   Laboratories Licensing Corporation.                                                  CD Mechanism Type                            CDM38A-5BD19
                                                                          CD
                                                                          Section       Base Unit Name                                  BU-5BD19
                                                                                        Optical Pick-up Name                          KSS-213B/K-N
                                                                                        Model Name Using Similar Mechanism                 NEW

                                                                          MD            MD Mechanism Type                                MDM-2FR
                                                                          Section       Base Unit Name                                    MBU-2F
                                                                                        Optical Pick-up Name                          KMS-210A/J-N

                                                                SPECIFICATIONS
  Amplifier section                                 CD player section                                    MD deck section
  DIN power output     40 W + 40 W                  System                 Compact disc and digital      System               MiniDisc digital audio
                       (6 ohms, at 1 kHz, DIN)                             audio system                                       system
  Continuous RMS power output                       Laser                  Semiconductor laser           Laser                Semiconductor laser
                       50 + 50 watts                                       (=780 nm)                                          (=780 nm)
                       (6 ohms at 1 kHz, 10% THD)                          Emission duration:                                 Emission duration:
  Peak music power output                                                  continuous                                         continuous
                       700 watts
                                                    Laser output           Max. 44.6
