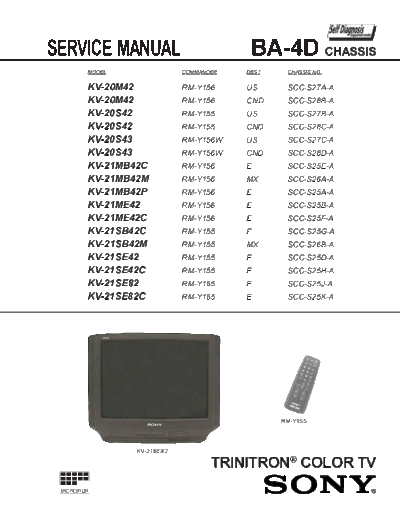

Image preview - the first page of the document
>> Download KV-20M42 sony tv documenatation <<
Text preview - extract from the document
SERVICE MANUAL BA-4D CHASSIS
MODEL COMMANDER DEST CHASSIS NO.
KV-20M42 RM-Y156 US SCC-S27A-A
KV-20M42 RM-Y156 CND SCC-S28B-A
KV-20S42 RM-Y155 US SCC-S27B-A
KV-20S42 RM-Y155 CND SCC-S28C-A
KV-20S43 RM-Y156W US SCC-S27C-A
KV-20S43 RM-Y156W CND SCC-S28D-A
KV-21MB42C RM-Y156 E SCC-S25E-A
KV-21MB42M RM-Y156 MX SCC-S26A-A
KV-21MB42P RM-Y156 E SCC-S25A-A
KV-21ME42 RM-Y156 E SCC-S25B-A
KV-21ME42C RM-Y156 E SCC-S25F-A
KV-21SB42C RM-Y155 E SCC-S25G-A
KV-21SB42M RM-Y155 MX SCC-S26B-A
KV-21SE42 RM-Y155 E SCC-S25D-A
KV-21SE42C RM-Y155 E SCC-S25H-A
KV-21SE82 RM-Y165 E SCC-S25J-A
KV-21SE82C RM-Y165 E SCC-S25K-A
RM-Y155
KV-21SE82
