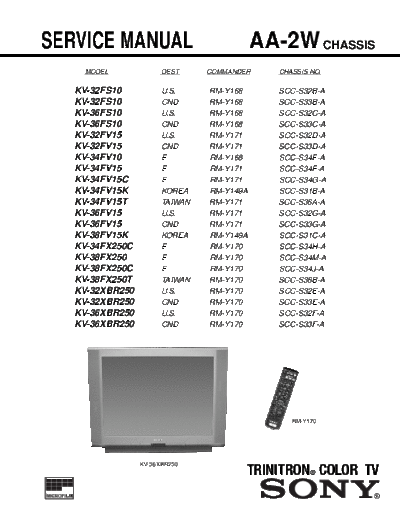

Image preview - the first page of the document
>> Download SONY KV36XBR250_KV34FX250- AA2W documenatation <<Text preview - extract from the document KV-32FS10/32FV15/32XBR250/34FV10/34FV15/34FV15C/34FX250C/34FV15K
34FV15T/36FS10/36FV15/36XBR250/38FX250/38FX250C/38FX250T/38FV15K
SERVICE MANUAL AA-2W CHASSIS
MODEL DEST. COMMANDER CHASSIS NO.
KV-32FS10 U.S. RM-Y168 SCC-S32B-A
KV-32FS10 CND RM-Y168 SCC-S33B-A
KV-36FS10 U.S. RM-Y168 SCC-S32C-A
KV-36FS10 CND RM-Y168 SCC-S33C-A
KV-32FV15 U.S. RM-Y171 SCC-S32D-A
KV-32FV15 CND RM-Y171 SCC-S33D-A
KV-34FV10 E RM-Y168 SCC-S34E-A
KV-34FV15 E RM-Y171 SCC-S34F-A
KV-34FV15C E RM-Y171 SCC-S34G-A
KV-34FV15K KOREA RM-Y149A SCC-S31B-A
KV-34FV15T TAIWAN RM-Y171 SCC-S36A-A
KV-36FV15 U.S. RM-Y171 SCC-S32G-A
KV-36FV15 CND RM-Y171 SCC-S33G-A
KV-38FV15K KOREA RM-Y149A SCC-S31C-A
KV-34FX250C E RM-Y170 SCC-S34H-A
KV-38FX250 E RM-Y170 SCC-S34M-A
KV-38FX250C E RM-Y170 SCC-S34J-A
KV-38FX250T TAIWAN RM-Y170 SCC-S36B-A
KV-32XBR250 U.S. RM-Y170 SCC-S32E-A
KV-32XBR250 CND RM-Y170 SCC-S33E-A
KV-36XBR250 U.S. RM-Y170 SCC-S32F-A
KV-36XBR250 CND RM-Y170 SCC-S33F-A
RM-Y170
KV-36XBR250
TRINITRON
