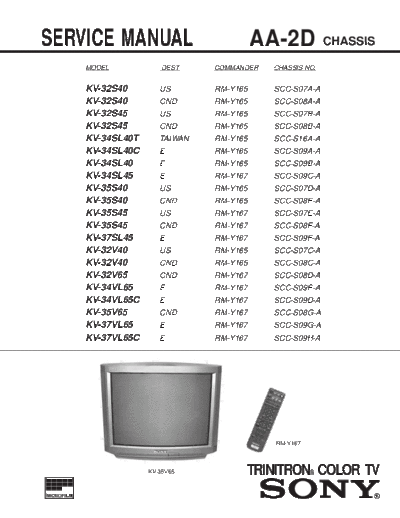

Image preview - the first page of the document
>> Download kv-35s45_aa-2d documenatation <<Text preview - extract from the document KV-32S40/32S45/34SL40/34SL40C/34SL40T/34SL45/35S40/35S45/37SL45/
32V40/32V65/34VL65/34VL65C/35V65/37VL65/37VL65C
SERVICE MANUAL AA-2D CHASSIS
MODEL DEST. COMMANDER CHASSIS NO.
KV-32S40 US RM-Y165 SCC-S07A-A
KV-32S40 CND RM-Y165 SCC-S08A-A
KV-32S45 US RM-Y165 SCC-S07B-A
KV-32S45 CND RM-Y165 SCC-S08B-A
KV-34SL40T TAIWAN RM-Y165 SCC-S16A-A
KV-34SL40C E RM-Y165 SCC-S09A-A
KV-34SL40 E RM-Y165 SCC-S09B-A
KV-34SL45 E RM-Y167 SCC-S09C-A
KV-35S40 US RM-Y165 SCC-S07D-A
KV-35S40 CND RM-Y165 SCC-S08E-A
KV-35S45 US RM-Y167 SCC-S07E-A
KV-35S45 CND RM-Y167 SCC-S08F-A
KV-37SL45 E RM-Y167 SCC-S09F-A
KV-32V40 US RM-Y165 SCC-S07C-A
KV-32V40 CND RM-Y165 SCC-S08C-A
KV-32V65 CND RM-Y167 SCC-S08D-A
KV-34VL65 E RM-Y167 SCC-S09E-A
KV-34VL65C E RM-Y167 SCC-S09D-A
KV-35V65 CND RM-Y167 SCC-S08G-A
KV-37VL65 E RM-Y167 SCC-S09G-A
KV-37VL65C E RM-Y167 SCC-S09H-A
RM-Y167
KV-35V65 TRINITRON
