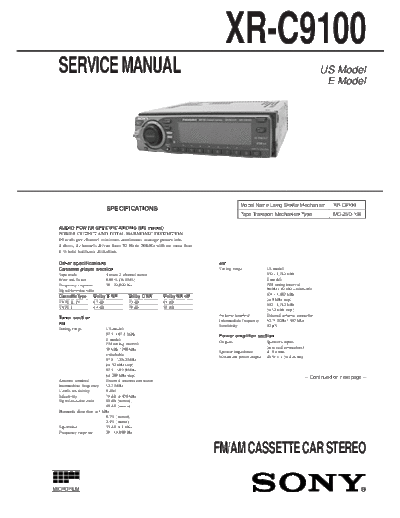

Image preview - the first page of the document
SONY XR-C9100


>> Download SONY XR-C9100 documenatation <<

Text preview - extract from the document
                                                                              XR-C9100
 SERVICE MANUAL                                                                                                                   US Model
                                                                                                                                   E Model




                                                                                     Model Name Using Similar Mechanism                XR-C8100
                           SPECIFICATIONS
                                                                                     Tape Transport Mechanism Type                     MG-25D-136

 AUDIO POWER SPECIFICATIONS (US model)
 POWER OUTPUT AND TOTAL HARMONIC DISTORTION
 19 watts per channel minimum continuous average power into
 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
 1 % total harmonic distortion.

 Other specifications                                                     AM
 Cassette player section                                                  Tuning range             US model:
 Tape track                 4-track 2-channel stereo                                               530 - 1,710 kHz
 Wow and flutter            0.08 % (WRMS)                                                          E model:
 Frequency response         30 - 20,000 Hz                                                         AM tuning interval:
 Signal-to-noise ratio                                                                             9 kHz / 10 kHz switchable
 Cassette type        Dolby B NR         Dolby C NR      Dolby NR off                              531 - 1,602 kHz
                                                                                                   (at 9 kHz step)
 TYPE II, IV          67 dB              73 dB           61 dB
                                                                                                   530 - 1,710 kHz
 TYPE I               64 dB              70 dB           58 dB
                                                                                                   (at 10 kHz step)
                                                                          Antenna terminal         External antenna connector
 Tuner section                                                            Intermediate frequency   10.71 MHz / 450 kHz
 FM                                                                       Sensitivity              30
