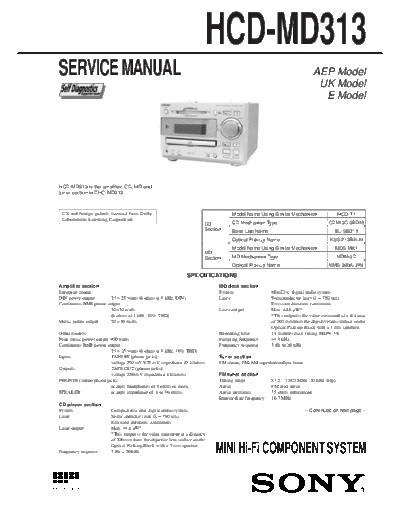

SONY_HCD-MD313


>> Download SONY_HCD-MD313 documenatation <<

Text preview - extract from the document
                                                                         HCD-MD313
  SERVICE MANUAL                                                                                                             AEP Model
                                                                                                                              UK Model
                                                                                                                               E Model




  HCD-MD313 is the amplifier, CD, MD and
  tuner section in DHC-MD313.



   US and foreign patents licensed from Dolby                                        Model Name Using Similar Mechanism                  HCD-T1
   Laboratories Licensing Corporation.
                                                                         CD          CD Mechanism Type                               CDM13C-5BD19
                                                                         Section     Base Unit Name                                     BU-5BD19
                                                                                     Optical Pick-up Name                            KSS-213B/K-N
                                                                                     Model Name Using Similar Mechanism                 MDS-MX1
                                                                         MD
                                                                         Section     MD Mechanism Type                                   MDM-3D
                                                                                     Optical Pick-up Name                            KMS-260A/J1N

                                                                SPECIFICATIONS
  Amplifier section                                                            MD deck section
  European model:                                                              System                   MiniDisc digital audio system
  DIN power output      25 + 25 watts (6 ohms at 1 kHz, DIN)                   Laser                    Semiconductor laser ( = 780 nm)
  Continuous RMS power output                                                                           Emission duration: continuous
                        30+30 watts                                            Laser output             Max. 44.6
