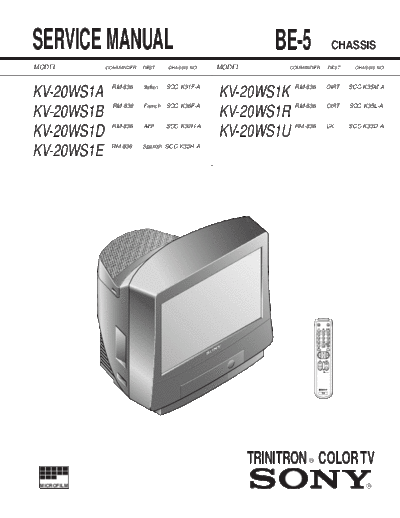

Sony BE-5 Chassis


>> Download Sony BE-5 Chassis documenatation <<

Text preview - extract from the document
                                                                                     KV-20WS1



SERVICE MANUAL                                               BE-5                   CHASSIS
MODEL        COMMANDER   DEST.     CHASSIS NO.   MODEL        COMMANDER       DEST.     CHASSIS NO.




KV-20WS1A     RM-836     Italian   SCC-K31F-A
                                                     KV-20WS1K   RM-836     OIRT       SCC-K35M-A


              RM-836     French SCC-K36F-A                       RM-836     OIRT       SCC-K35L-A
KV-20WS1B                                            KV-20WS1R
              RM-836     AEP       SCC-K32H-A                    RM-836    UK         SCC-K33D-A
KV-20WS1D                                            KV-20WS1U
KV-20WS1E     RM-836     Spanish SCC-K30H-A




                                                                             MENU




                                                                          PROGR




                                                                          RM-836




                                                         TRINITRON COLOR TV
                                                                     R




 MICROFILM                                                                                  R




                                             --1--
KV-20SW1


                             Television
       ITEM MODEL                                             Channel Coverage                       Colour System
                              System

                                             VHF: E2-E12, UHF: E21-E69
                                                                                                PAL, SECAM
                                             A-H2, U1-U10, M1-10
     Italian             B/G/H                                                                  NTSC 3.58,4.43
                                             CABLE TV: S01-S05, S1-S20
                                                                                                (only video in)
                                             HYPER: S21-S41

                                             VHF: E2-E12, UHF: B21-B69, HYPER: S1-S41
                                             D/K   R1-R12, R21-R69                              PAL, SECAM
     French              B/G/H, D/K, I, L    I   UHF: B21-B69                                   NTSC 3.58,4.43
                                             L   F2-F10, B-Q, F21-F69                           (only video in)
                                             CABLE TV: S01-S05, S1-S20

                                             VHF: E2-E12, UHF:E21-E69, HYPER: S1-S41            PAL, SECAM
     AEP                 B/G/H, D/K          D/K   R1-R12, R21-R69                              NTSC 3.58,4.43
                                             CABLE TV: S01-S05, S1-S20                          (only video in)

                                             VHF: E2-E12, UHF:E21-E69, HYPER: S1-S41            PAL, SECAM
     Spanish             B/G/H, D/K          D/K   R1-R12, R21-R69                              NTSC 3.58,4.43
                                             CABLE TV: S01-S05, S1-S20                          (only video in)

                                             VHF: E2-E12, UHF:E21-E69, HYPER: S1-S41            PAL, SECAM
     OIRT                B/G/H, D/K          D/K   R1-R12, R21-R69                              NTSC 3.58,4.43
                                             CABLE TV: S01-S05, S1-S20                          (only video in)

                                                                                                PAL
     UK                  I                   UHF: B21-B69                                       NTSC 3.58,4.43
                                                                                                (only video in)



     MODEL                   20WS1A         20WS1B    20WS1D       20WS1E        20WS1K   20WS1R      20WS1U
     Power Consumption           70W         70W        70W          70W          70W        70W        92W




                                                        SPECIFICATIONS
Picture Tube        Super Trinitron Wide
                    Approx. 49 cm (20 inches)
                    (Approx. 46 cm picture measured
                     diagonally) 86
