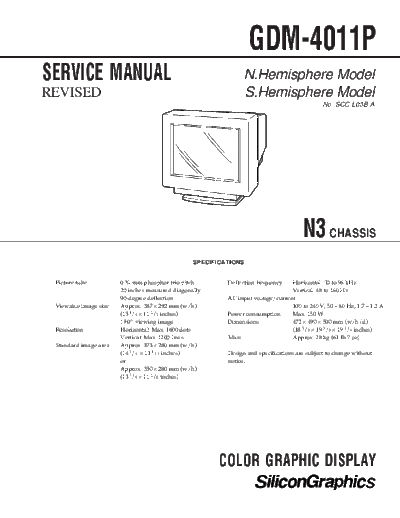

SERVICE MANUAL N.Hemisphere Model
REVISED S.Hemisphere Model
No. SCC-L03B-A
N3 CHASSIS
SPECIFICATIONS
Picture tube 0.31 mm phosphor trio pitch Deflection frequency Horizontal: 30 to 96 kHz
20 inches measured diagonally Vertical: 48 to 160 Hz
90-degree deflection AC input voltage/current
Viewable image size Approx. 387
