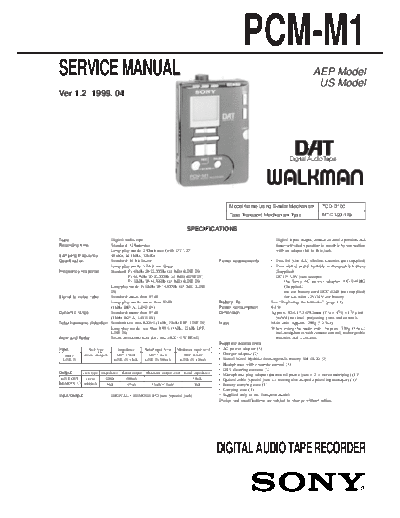

Sony PCM-M1


>> Download Sony PCM-M1 documenatation <<

Text preview - extract from the document
                                                                                                               PCM-M1
  SERVICE MANUAL                                                                                                                                     AEP Model
                                                                                                                                                      US Model
  Ver 1.2 1999. 04




                                                                                                                           t
                                                                                                                           w
                                                                                                         Model Name Using Similar Mechanism               TCD-D100
                                                                                                         Tape Transport Mechanism Type                    MT-D100-128

                                                                                  SPECIFICATIONS
  Tape                      Digital audio tape                                                                                  Digital input/ output, remote control operation and
  Recording time            Standard: 120minutes                                                                                timer-activated operation is possible by connection
                            Long-play mode: 240minutes (with DT-120)                                                            with an adaptor kit to this jack.
  Sampling frequency        48kHz, 44.1kHz, 32kHz
  Quantization              Standard: 16-bit linear                                               Power requirements
