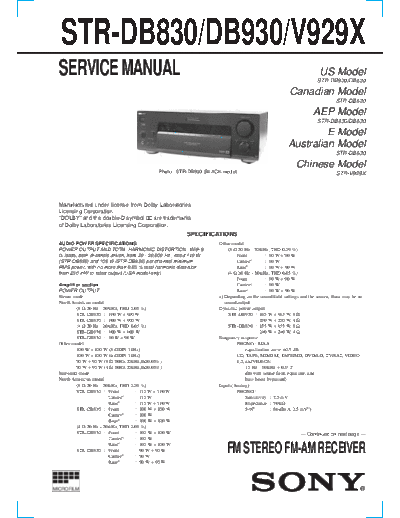

Image preview - the first page of the document
Sony STR-DB830_930


>> Download Sony STR-DB830_930 documenatation <<

Text preview - extract from the document
  STR-DB830/DB930/V929X
  SERVICE MANUAL                                                                                                       US Model
                                                                                                                      STR-DB930/DB830

                                                                                                        Canadian Model
                                                                                                                               STR-DB930

                                                                                                                    AEP Model
                                                                                                                      STR-DB930/DB830

                                                                                                                E Model
                                                                                                       Australian Model
                                                                                                                               STR-DB930

                                                                                                           Chinese Model
                                              Photo : STR-DB930 (BLACK model)                                                  STR-V929X




  Manufactured under license from Dolby Laboratories
  Licensing Corporation.
  "DOLBY" and the double-D symbol a are trademarks
  of Dolby Laboratories Licensing Corporation.
                                                         SPECIFICATIONS
  AUDIO POWER SPECIFICATIONS                                         Other model
  POWER OUTPUT AND TOTAL HARMONIC DISTORTION : With 8                     (8  20 Hz - 20 kHz, THD 0.09 %)
   loads, both channels driven, from 20 - 20,000 Hz ; rated 110 W            Front          : 90 W + 90 W
  (STR-DB930) and 100 W (STR-DB830) per channel minimum                      Centera)       : 90 W
  RMS power, with no more than 0.05 % total harmonic distortion              Reara)         : 90 W + 90 W
  from 250 mW to rated output (USA model only).                           (4  20 Hz - 20 kHz, THD 0.05 %)
                                                                             Front          : 90 W + 90 W
  Amplifier section                                                          Centera)       : 90 W
  POWER OUTPUT                                                               Reara)         : 90 W + 90 W
  Stereo mode                                                        a) Depending on the sound field settings and the source, there may be no
  North American model                                                  sound output.
          (8  20 Hz - 20 kHz, THD 0.05 %)                            Dynamic power output
          STR-DB930 : 110 W + 110 W                                       STR-DB930 : 165 W + 165 W, 8
          STR-DB830 : 100 W + 100 W                                                      250 W + 250 W, 4
          (4  20 Hz - 20 kHz, THD 0.05 %)                                 STR-DB830 : 155 W + 155 W, 8
          STR-DB930 : 100 W + 100 W                                                      240 W + 240 W, 4
          STR-DB830 : 90 W + 90 W                                    Frequency response
  Other model                                                                PHONO : RIAA
          100 W + 100 W (8 DIN 1kHz)                                              equalization curve
