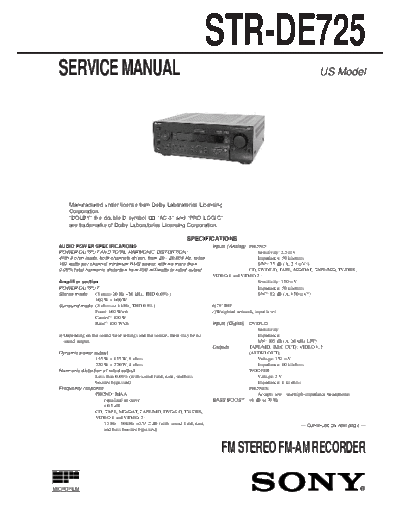

Image preview - the first page of the document



>> Download Sony STR-DE725 documenatation <<

Text preview - extract from the document

                                                                             STR-DE725
  SERVICE MANUAL                                                                                                              US Model




       Manufactured under license from Dolby Laboratories Licensing
       Corporation.
       "DOLBY" the double-D symbol a "AC-3" and "PRO LOGIC"
       are trademarks of Dolby Laboratories Licensing Corporation.

                                                                  SPECIFICATIONS
  AUDIO POWER SPECIFICATIONS                                                 Inputs (Analog) PHONO:
  POWER OUTPUT AND TOTAL HARMONIC DISTORTION:                                                    Sensitivity: 2.5 mV
  With 8 ohm loads, both channels driven, from 20 - 20,000 Hz; rated                             Impedance: 50 kilohms
  100 watts per channel minimum RMS power, with no more than                                     S/Nb): 75 dB (A, 2.5 mVc))
  0.09% total harmonic distortion from 250 milliwatts to rated output .                      CD, DVD/LD, TAPE, MD/DAT, TAPE/MD, TV/DBS,
                                                                             VIDEO 1 and VIDEO 2 :
  Amplifier section                                                                              Sensitivity: 150 mV
  POWER OUTPUT                                                                                   Impedance: 50 kilohms
  Stereo mode     (8 ohms 20 Hz
