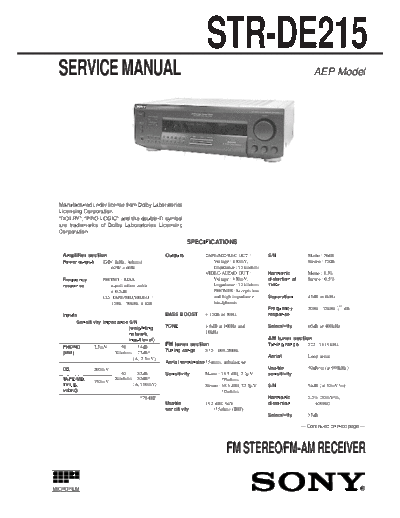

Image preview - the first page of the document
Sony STR-DE215 receiver


>> Download Sony STR-DE215 receiver documenatation <<

Text preview - extract from the document
                                                                  STR-DE215
  SERVICE MANUAL                                                                                                   AEP Model




  Manufactured under license from Dolby Laboratories
  Licensing Corporation.
  "DOLBY", "PRO LOGIC" and the double-D symbol
  are trademarks of Dolby Laboratories Licensing
  Corporation.
                                                           SPECIFICATIONS

   Amplifier section                             Outputs          TAPE/MD REC OUT :           S/N                Mono : 76dB
   Power output     (DIN 1kHz, 4ohms)                                Voltage : 150mV,                            Stereo : 70dB
                        60W + 60W                                    Impedance : 10 kilohms
                                                                  VIDEO AUDIO OUT :           Harmonic           Mono : 0.3%
   Frequency        PHONO : RIAA                                     Voltage : 150mV,         distortion at      Stereo : 0.5%
   response             equalization curve                           Impedance : 10 kilohms   1kHz
