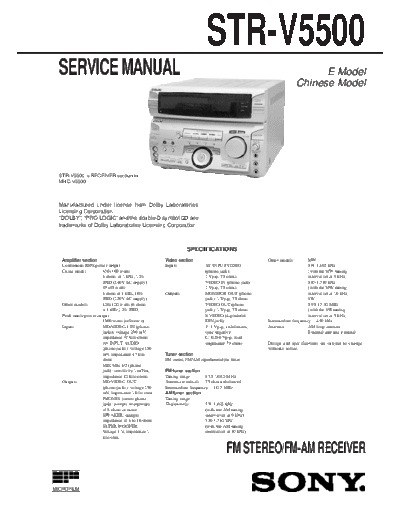

Image preview - the first page of the document
Sony STR-V5500


>> Download Sony STR-V5500 documenatation <<

Text preview - extract from the document
                                                                         STR-V5500
  SERVICE MANUAL                                                                                                        E Model
                                                                                                                  Chinese Model




  STR-V5500 is RECEIVER section in
  MHC-V5500.



  Manufactured under license from Dolby Laboratories
  Licensing Corporation.
  "DOLBY", "PRO LOGIC" and the double-D symbol a are
  trademarks of Dolby Laboratories Licensing Corporation.



                                                              SPECIFICATIONS
   Amplifier section                               Video section                                  Other models:        MW
   Continuous RMS power output                     Inputs               AV INPUT VIDEO                                 531-1,602 kHz
   China model        100+100 watts                                     (phono jack):                                  (with the MW tuning
                      6 ohms at 1 kHz, 10%                              1 Vp-p, 75 ohms                                interval set at 9 kHz)
                      THD (240V AC supply)                              VIDEO IN (phono jack):                         530-1,710 kHz
                      85+85 watts                                       1 Vp-p, 75 ohms                                (with the MW tuning
                      6 ohms at 1 kHz, 10%         Outputs              MONITOR OUT (phono                             interval set at 10 kHz)
                      THD (220V AC supply)                              jack): 1 Vp-p, 75 ohms                         SW
   Other models       100+100 watts (6 ohms                             VIDEO OUT (phono                               5.95-17.90 MHz
                      at 1 kHz,10% THD)                                 jack): 1 Vp-p, 75 ohms                         (with the SW tuning
   Peak music power output                                              S-VIDEO (4-pin/mini-                           interval set at 5 kHz)
                      1500 watts (reference)                            DIN jack):                Intermediate frequency 450 kHz
   Inputs             MD/VIDEO 1 IN (phono                              Y: 1 Vp-p, unbalanced,    Antenna              AM loop antenna
                      jacks): voltage 250 mV,                           sync negative                                  External antenna terminal
                      impedance 47 kilo ohms                            C: 0.286 Vp-p, load
                      AV INPUT AUDIO                                    impedance 75 ohms         Design and specifications are subject to change
                      (phono jacks): voltage 250                                                  withouto notice.
                      mV, impedance 47 kilo        Tuner section
                      ohms                         FM stereo, FM/AM superheterodyne tuner
                      MIX MIc 1/2 (phone
                      jack): sensitivity 1 mVm,    FM tuner section
                      impedance 10 kilo ohms       Tuning range         87.5-108.0 MHz
   Outputs            MD/VIDEO OUT                 Antenna terminals 75 ohm unbalanced
                      (phono jacks): voltage 250   Intermediate frequency 10.7 MHz
                      mV, impedance 1 kilo ohm     AM tuner section
                      PHONES (stereo phone         Tuning range
                      jack): accepts headphones    Thai models:         531-1,602 kHz
                      of 8 ohms or more.                                (with the AM tuning
                      SPEAKER: accepts                                  interval set at 9 kHz)
                      impedance of 6 to 16 ohms                         530-1,710 kHz
                      SUPER WOOFER:                                     (with the AM tuning
                      Voltage 1 V, impedance 1                          interval set at 10 kHz)
                      kilo ohm


                                                                                    FM STEREO/FM-AM RECEIVER

MICROFILM
                                          TABLE OF CONTENTS
                            1.      GENERAL
