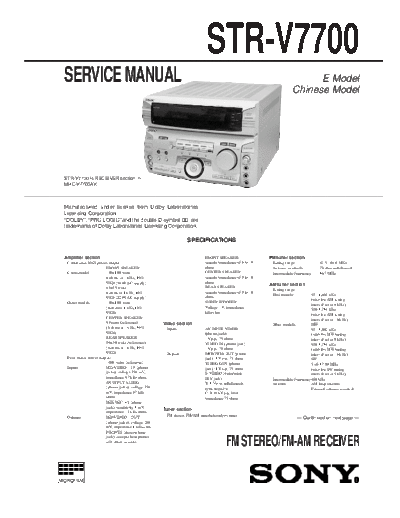

Image preview - the first page of the document
Sony STR-V7700


>> Download Sony STR-V7700 documenatation <<

Text preview - extract from the document
                                                                           STR-V7700
  SERVICE MANUAL                                                                                                           E Model
                                                                                                                     Chinese Model




  STR-V7700 is RECEIVER section in
  MHC-V7700AV.



  Manufactured under license from Dolby Laboratories
  Licensing Corporation.
  "DOLBY", "PRO LOGIC" and the double-D symbol a are
  trademarks of Dolby Laboratories Licensing Corporation.

                                                                 SPECIFICATIONS

  Amplifier section                                                       FRONT SPEAKER:                 FM tuner section
   Continuous RMS power output                                            accepts impedance of 6 to 16    Tuning range               87.5-108.0 MHz
                        FRONT SPEAKER:                                    ohms                            Antenna terminals          75 ohm unbalanced
   China model          100+100 watts                                     CENTER SPEAKER:                 Intermediate frequency     10.7 MHz
                        6 ohms at 1 kHz, 10%                              accepts impedance of 8 to 16
                        THD (240V AC supply)                              ohms
                                                                                                         AM tuner section
                        85+85 watts                                       REAR SPEAKER:
                                                                                                          Tuning range
                        6 ohms at 1 kHz, 10%                              accepts impedance of 8 to 16
                                                                                                          Thai models:          531-1,602 kHz
                        THD (220V AC supply)                              ohms
                                                                                                                                (with the AM tuning
   Other models         100+100 watts                                     SUPER WOOFER:
                                                                                                                                interval set at 9 kHz)
                        (6 ohmsat 1 kHz,10%                               Voltage 1 V, impedance 1
                                                                                                                                530-1,710 kHz
                        THD)                                              kilo ohm                                              (with the AM tuning
                        CENTER SPEAKER:                                                                                         interval set at 10 kHz)
                        45watts (reference)          Video section                                        Other models:         MW
                        (8 ohms at 1 kHz, 10%         Inputs              AV INPUT VIDEO                                        531-1,602 kHz
                        THD)                                              (phono jack):                                         (with the MW tuning
                        REAR SPEAKER:                                     1 Vp-p, 75 ohms                                       interval set at 9 kHz)
                        30+30 watts (reference)                           VIDEO IN (phono jack):                                530-1,710 kHz
                        (8 ohms at 1 kHz, 10%                             1 Vp-p, 75 ohms                                       (with the MW tuning
                        THD)                          Outputs             MONITOR OUT (phono                                    interval set at 10 kHz)
   Peak music power output:                                               jack): 1 Vp-p, 75 ohms                                SW
                        1800 watts (reference)                            VIDEO OUT (phono                                      5.95-17.90 MHz
   Inputs               MD/VIDEO 1 IN (phono                              jack): 1 Vp-p, 75 ohms                                (with the SW tuning
                        jacks): voltage 250 mV,                           S-VIDEO (4-pin/mini-                                  interval set at 5 kHz)
                        impedance 47 kilo ohms                            DIN jack):                      Intermediate frequency450 kHz
                        AV INPUT AUDIO                                    Y: 1 Vp-p, unbalanced,          Antenna               AM loop antenna
                        (phono jacks): voltage 250                        sync negative                                         External antenna terminal
                        mV, impedance 47 kilo                             C: 0.286 Vp-p, load
                        ohms                                              impedance 75 ohms
                        MIX MIC 1/2 (phone
                        jack): sensitivity 1 mV,
                                                     Tuner section
                        impedance 10 kilo ohms
   Outputs              MD/VIDEO 1 OUT                FM stereo, FM/AM superheterodyne tuner
                                                                                                                         -- Continued on next page --
                        (phono jacks): voltage 250
                        mV, impedance 1 kilo ohm
                        PHONES (stereo phone
                        jack): accepts headphones
                        of 8 ohms or more.
                                                                                      FM STEREO/FM-AM RECEIVER

MICROFILM
                                                                                             TABLE OF CONTENTS
General                                                                1.      GENERAL
