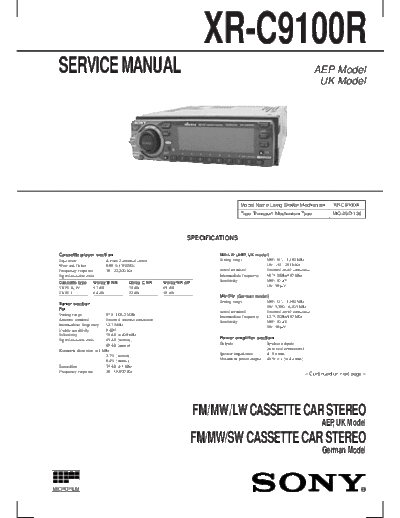

Sony XR-C9100R Service Manual


>> Download Sony XR-C9100R Service Manual documenatation <<

Text preview - extract from the document
                                                                          XR-C9100R
 SERVICE MANUAL                                                                                                                  AEP Model
                                                                                                                                  UK Model




                                                                                       Model Name Using Similar Mechanism                XR-C8100R
                                                                                       Tape Transport Mechanism Type                     MG-25D-136



                                                                   SPECIFICATIONS

 Cassette player section                                                    MW/LW (AEP, UK model)
 Tape track                 4-track 2-channel stereo                        Tuning range           MW: 531 - 1,602 kHz
 Wow and flutter            0.08 % (WRMS)                                                          LW: 153 - 281 kHz
 Frequency response         30 - 20,000 Hz                                  Aerial terminal        External aerial connector
 Signal-to-noise ratio                                                      Intermediate frequency 10.71 MHz/450 kHz
 Cassette type        Dolby B NR         Dolby C NR      Dolby NR off       Sensitivity            MW: 30
