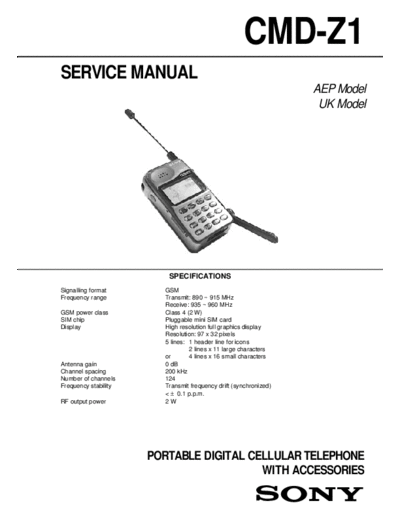

Image preview - the first page of the document
Sony CMD-Z1


>> Download Sony CMD-Z1 documenatation <<

Text preview - extract from the document
                                                    CMD-Z1
SERVICE MANUAL
                                                                  AEP Model
                                                                   UK Model




                         SPECIFICATIONS
Signalling format       GSM
Frequency range         Transmit: 890 ~ 915 MHz
                        Receive: 935 ~ 960 MHz
GSM power class         Class 4 (2 W)
SIM chip                Pluggable mini SIM card
Display                 High resolution full graphics display
                        Resolution: 97 x 32 pixels
                        5 lines: 1 header line for icons
                                 2 lines x 11 large characters
                        or       4 lines x 16 small characters
Antenna gain            0 dB
Channel spacing         200 kHz
Number of channels      124
Frequency stability     Transmit frequency drift (synchronized)
                        <
