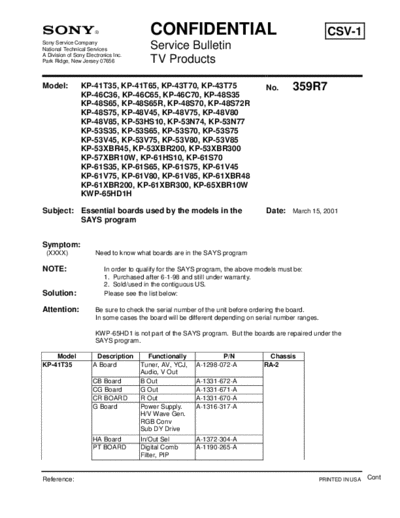

Image preview - the first page of the document
>> Download TVP0359 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KP-41T35, KP-41T65, KP-43T70, KP-43T75 No. 359R7
KP-46C36, KP-46C65, KP-46C70, KP-48S35
KP-48S65, KP-48S65R, KP-48S70, KP-48S72R
KP-48S75, KP-48V45, KP-48V75, KP-48V80
KP-48V85, KP-53HS10, KP-53N74, KP-53N77
KP-53S35, KP-53S65, KP-53S70, KP-53S75
KP-53V45, KP-53V75, KP-53V80, KP-53V85
KP-53XBR45, KP-53XBR200, KP-53XBR300
KP-57XBR10W, KP-61HS10, KP-61S70
KP-61S35, KP-61S65, KP-61S75, KP-61V45
KP-61V75, KP-61V80, KP-61V85, KP-61XBR48
KP-61XBR200, KP-61XBR300, KP-65XBR10W
KWP-65HD1H
Subject: Essential boards used by the models in the Date: March 15, 2001
SAYS program
Symptom:
(XXXX) Need to know what boards are in the SAYS program
NOTE: In order to qualify for the SAYS program, the above models must be:
1. Purchased after 6-1-98 and still under warranty.
2. Sold/used in the contiguous US.
Solution: Please see the list below:
Attention: Be sure to check the serial number of the unit before ordering the board.
In some cases the board will be different depending on serial number ranges.
KWP-65HD1 is not part of the SAYS program. But the boards are repaired under the
SAYS program.
Model Description Functionally P/N Chassis
KP-41T35 A Board Tuner, AV, YCJ, A-1298-072-A RA-2
Audio, V Out
CB Board B Out A-1331-672-A
CG Board G Out A-1331-671-A
CR BOARD R Out A-1331-670-A
G Board Power Supply. A-1316-317-A
H/V Wave Gen.
RGB Conv
Sub DY Drive
HA Board In/Out Sel A-1372-304-A
PT BOARD Digital Comb A-1190-265-A
Filter, PIP
Reference: PRINTED IN USA Cont
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-41T35 ZR Board VM, DY A-1390-682-A RA-2
ZG Board VM, DY A-1390-683-A
KP-41T65 A Board Tuner AV,YCJ, A-1298-448-A RA-2A
Audio, V Out
CB Board B Out A-1331-779-A
CG Board G Out A-1331-778-A
CR Board R Out A-1331-777-A
G Board Power Supply A-1316-367-A
H/V Wave Gen.
RGB Conv. Sub
DY
HA Board In/Out select A-1372-441-A
PT Board Comb Filter/PIP A-1190-265-A
Z Board DY/VM A-1390-826-A
KP-41T65 A Board Tuner AV,YCJ, A-1298-655-A RA-2A
SN 95xxxxx Audio, V Out
CB Board B Out A-1331-813-A
CG Board G Out A-1331-812-A
CR Board R Out A-1331-811-A
G Board Power Supply A-1316-422-A
H/V Wave Gen.
RGB Conv Sub
DY
HA Board In/Out select A-1372-474-A
Z Board DY/VM A-1390-843-A
KP-43T70 A Board Tuner, Audio A-1299-067-A RA-3
control, Video,
Regi. Correction
CB Board B Out A-1331-924-A
CG Board G Out A-1331-923-A
CR Board R Out A-1331-922-A
G BOARD Power Supply, A-1316-475-A
HV & DY Drives
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Focus Sensors A-1390-933-A
KP-43T75 A Board Audio, system A-1298-864-A RA-3A
control, video &
reg. control
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
G Board Power Supply, A-1316-475-A
H/V Output
2
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-43T75 HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
KP-46C36 A Board Tuner, AV, YCJ, A-1298-009-A RA-2
Audio, V Out
CB Board B Out A-1331-669-A
CG Board G Out A-1331-668-A
CR Board R Out A-1331-667-A
G Board Power Supply. A-1316-295-A
H/V Wave Gen.
RGB Conv.
HA BOARD In/Out Select A-1372-304-A
P Board PIP & Chroma A-1195-103-A
Decoder
ZG Board VM, DY A-1390-682-A
ZR Board VM, DY A-1390-682-A
KP-46C65 Same as KP-41T65 except the following Board
G BOARD Power Supply A-1316-365-A RA-2A
KP-46C70 Same as KP-43T70 except the following Board
G Board Power Supply, A-1316-509-A RA-3
HV & DY Drives
KP-48S35 Same as KP-46C36 except for the following Board
A BOARD Tuner, AV, YCJ, A-1297-946-A RA-2
Audio, V Out
G Board Power Supply. A-1316-304-A
H/V Wave Gen.
R G B Conv.
Sub DY Drive
HA BOARD In/Out Select A-1372-288-A
KP-48S65 Same as KP-41T65 except for the following Board
KP-48S65R G Board Power Supply A-1316-367-A RA-2A
KP-48S70 Same as KP-46C70 except for the following Board
And
KP-48S72R G Board Power Supply, A-1316-471-A RA-3
HV & DY Drives
KP-48S75 A Board Audio, System, A-1298-864-A RA-3A
Tuner, Video &
Reg. Control.
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
3
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-48S75 G Board Power Supply, A-1316-471-A RA-3A
H/V Output
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
Model Description Functionally P/N Chassis
KP-48V45 Same as KP-41T35 except for the following Boards
A Board A-1298-067-A A-1298-067-A RA-2
G Board Power Supply. A-1316-314-A
H/V Wave Gen.
RGB Conv.
Sub DY Drive
PV Board Digital Comb A-1190-264-A
Filter, PIP
KP-48V75 A BOARD Y/C/J, AV switch, A-1298-550-A RA-2A
Audio output,
Vert output,Tuner,
AV-IN/OUT
CB BOARD Blue Output A-1331-806-A
CG BOARD Green Output A-133-1805-A
CR BOARD Red Output A-133-1804-A
G BOARD H/V Deflection, A-1316-388-A
HV, Power Supply
HA BOARD Video 2 input, A-1372-441-A
SIRCS,
Function Key
PD BOARD Decoder, A-1190-317-A
3D comb filter,
P&P controller
U BOARD Video 4 input A-1373-667-A
SIRCS IN/OUT
Z BOARD DY/VM A-1390-826-A
KP-48V80 A Board Tuner, Audio A-1299-051-A RA-3
control, Video,
Regi. Correction
CB BOARD B Drive A-1331-924-A
CG Board G Drive A-1331-923-A
CR Board R Drive A-1331-922-A
G Board Power Supply, A-1316-471-A
HV & DY Drives
HA Board Control Switches A-1372-619-A
HB-Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S BOARD Focus Sensors A-1390-933-A
U Board Video/Audio A-1373-727-A
IN/Out,
4
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-48V85 A Board Audio, System, A-1298834-A RA-3A
Tuner, Video &
Reg. Control.
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
G Board Power Supply, A-1316-471-A
H/V Output
HA Board Control Switches A-1316-471-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
U Board SIRCS A-1373-727-A
KP-53HS10 A Board Tuner, Main CPU, A-1299-141-A RA-4B
OSD, Video,
Sensor Amp.
BA Board 3 D Comb Filter A-1131-461-A
BD Board Conv. Registration A-1131-556-A
BM Board Mid Controller A-1131-470-A
BR Board TBC, Up A-1131-462-A
Converter
CB Board B CRT Board A-1331-974-A
CG Board G CRT Board A-1331-973-A
CR Board R CRT Board A-1331-972-A
D Board Deflection, HV A-1346-873-A
DS Board DF Control, A-1343-712-A
RGB Shading
G Board Power Supply. A-1316-513-A
HA Board Function Keys A-1372-775-A
HC Board SIRCS Receiver A-1372-776-A
K Board Audio A-1380-624-A
S Board Sensor A-1390-933-A
U Board SIRCS Input/out A-1373-794-A
ZB Board DY/VM A-1390-952-A
ZG Board DY/VM A-1390-951-A
ZR Board DY/VM A-1390-950-A
KP-53N74 Same as KP-46C70 except the following Board
A Board Tuner, Audio A-1298-981-A RA-3
control, Video,
Reg. Correction
5
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-53N77 A Board Audio, System, A-1298-981-A RA-3A
Tuner, Video &
Reg. Control.
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
G Board Power Supply, A-1316-499-A
H/V Output
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
KP-53S35 Same as KP-46C36 except for the following Boards
A Board Tuner, AV, YCJ, A-1297-946-A RA-2
Audio, V Out
G Board Power Supply. A-1316-295-A
H/V Wave Gen.
RGB Conv .
Sub DY Drive
HA BOARD In/Out Select A-1372-288-A
KP-53S65 Same as KP-41T65 except for the following Boards
SN 90xxxxx G Board Power Supply. A-1316-365-A RA-2A
H/V Wave Gen.
RGB Conv.
Sub DY Drive
SN 91xxxxx G Board Power Supply. A-1316-379-A
H/V Wave Gen.
RGB Conv.
Sub DY Drive
KP-53S70 A Board Tuner, Audio A-1299-067-A RA-3
S/N90XXXXX control, Video,
Reg. Correction
CB Board B Drive A-1331-942-A
CG Board G Drive A-1331-923-A
CR Board R Drive A-1331-922-A
G Board Power Supply, A-1316-509-A
HV & DY Drives
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Focus Sensors A-1390-933-A
KP-53S70 Same as KP-53S70 S/N9000001 except for the following Boards
S/N95XXXXX
A Board Tuner, Audio A-1298-864-A RA-3
Reg. Correction
G Board Power Supply, A-1316-499-A
HV out
6
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-53S75 A Board Audio, System, A-1298-864-A RA-3A
Tuner, Video &
Reg. Control.
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
G Board Power Supply, A-1316-437-A (Ser.No. 900-)
H/V Output A-1316-499-A (Ser. No. 950-)
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
KP-53V45 Same as KP-41T35 except for the following Boards
A Board Tuner, AV, YCJ, A-1298-067-A RA-2
Audio, V Out
G Board Power Supply. A-1316-313-A
H/V Wave Gen.
PV Board Digital Comb Filter, A-1190-264-A
PIP
KP-53V75 Same as KP-48V75 except for the following Board
G Board H/V Deflection, A-1316-376-A RA-2A
HV, Power Supply
KP-53V80 Same as KP-48V80 except for the following Boards
A Board Tuner, Audio A-1298-843-A RA-3
control, Video,
Regi. Correction
G Board Power Supply, A-1316-437-A
HV & DY Drives
KP-53V85 A Board Audio, System, A-1298-843-A RA-3A
Tuner, Video &
Reg. Control.
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
G Board Power Supply, A-1316-437-A
H/V Output
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
7
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-53XBR45 AA Board Audio, H Drive, A-1297-540-A RA-1
H Out
AB Board Tuning micron. A-1297-539-A
System Control
CB Board B Out A-1331-503-A
CG Board G Out A-1331-502-A
CR Board R Out A-1331-501-A
D Board RGB Conv. Corr. A-1346-537-A
V Out
Sub DY Drive
E Board H Phase, HV Ref A-1341-885-A
HV Det.
HV Reg.-Det.
G Board Power Supply A-1316-229-A
GB Board Audio P/S A-1311-436-A
HA Board LED/ SIRCS A-1372-140-A
HB Board Video 2 in A-1372-141-A
K Board Audio A-1380-499-A
M Board Y/C/J A-1306-507-A
PLL Control
P5 Board Comb Filter A-1195-092-A
U Board AV Switch A-1373-526-A
X Board MPX, PIP, XDS, A-1394-673-A
OSD Mixer
ZB Board VM, DY A-1390-491-A
ZG Board VM, DY A-1390-489-A
ZR Board VM, DY A-1390-487-A
KP-53XBR200 A Board Main CPU, AV sw A-1298-500-A RA-4
OSD CPU, 3D
comb filter, Tuner
BD Board Registration D/A A-1131-321-A
converter 1,
BM Board Main/Sub, ADC & A-1131-320-A
CPU, Mid
controller, PLL
BR Board TBC, Up & A/D A-1131-319-A
converter
CB Board Blue CRT Board A-1331-783-A
CG Board Green CRT Board A-1331-782-A
CR Board RED CRT Board A-1331-781-A
D Board H/V Def. Sub DEF, A-1343-477-A
HV Reg.
D. F. shading
G Board Power Supply A-1316-400-A
8
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP-53XBR200 HA Board Function Keys A-1372-448-A RA-4
HB Board Video 2 input A-1372-449-A
HC Board SIRCS Receiver A-1372-450-A
K Board Audio Amp, Tone A-1380-573-A
control, Pro logic
Decoder
U Board SIRCS In/Out A-1373-675-A
ZB Board Blue DY/VM A-1390-836-A
ZG Board Green DY/VM A-1390-835-A
ZR Board Red DY/VM A-1390-834-A
KP-53XBR300 A Board Tuner, AV Sw., A-1298-973-A RA-4A
Jungle, Video, I/O,
YUV Sw., Chroma
Dec. CPU, OSD
Reg. Sensor
BA Board 3 Comb Filter A-1131-461-A
BD Board Digital Reg. A-1131-460-A
BM Board MID A-1131-470-A
BR Board DRC A-1131-462-A
CB Board B CRT Board A-1331-974-A
CG Board G CRT Board A-1331-973-A
CR Board Red CRT Board A-1331-972-A
D Board Deflection HV Reg. A-1343-771-A
D. F. Shading
DS Board Shading A-1343-712-A
G Board Power Supply A-1316-400-A
HA Board Function Key A-1372-448-A
HB Board Video 2 input A-1372-449-A
HC Board SIRCS Receiver A-1372-450-A
K Board Audio Amp, Dolby A-1380-618-A
U Board SIRCS I/O, DTV A-1373-761-A
HD/VD Input
ZB Board Blue DY, I/F A-1390-952-A
ZG Board Green DY, I/F A-1390-951-A
ZR Board Red DY, I/F A-1390-950-A
KP-57XBR10W A Board Main CPU, AV A-1299-347-A RA-4W
SW., OSD CPU,
Chroma, Tuner,
Video Input, OSD
Processor, Video
Processor, Sensor
Amp..
BA Board 3 Comb Filter A-1131-461-A
BD Board Digital Reg. A-1131-650-A
BM Board MID, Sub ADC A-1131-648-A
BR Board DRC, MID A-1131-649-A
9
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
KP- CG Board G CRT Board A-1332-143-A RA-4W
57XBR10W
CR Board Red CRT Board A-1332-142-A
D Board Deflection HV Reg. A-1346-994-A
D. F. Shading
G Board Power Supply A-1316-552-A
HA Board Function Key A-1372-897-A
HB Board Video 2 input A-1372-898-A
HC Board SIRCS Receiver A-1372-900-A
HD Board Power Sw. A-1372-899-A
K Board Audio, Prologic A-1380-643-A-
S Board Sensor A-1390-933-A
U Board SIRCS In/Out A-1373-761-A
ZB Board DY/ VM A-1391-098-A
ZG Board DY/ VM A-1391-097-A
ZR Board DY/ VM A-1391-096-A
KP-53XBR300 K Board Audio Amp, Dolby A-1380-618-A RA-4A
U Board SIRCS I/O, DTV A-1373-761-A
HD/VD Input
ZB Board Blue DY, I/F A-1390-952-A
ZG Board Green DY, I/F A-1390-951-A
ZR Board Red DY, I/F A-1390-950-A
KP-61HS10 Same as KP-53HS10 except for the following Board
D Board Deflection, HV A-1346-899-A RA-4B
KP-61S35 Same as KP-46C36 except for the following Boards
A Board Tuner, AV, YCJ, A-1297-946-A RA-2
Audio, V Out
G Board Power Supply. A-1316-304-A
H/V Wave Gen.
RGB Conv.
HA BOARD In/Out Select A-1372-288-A
KP-61S65 Same as KP-41T65 except for the following Board RA-2A
G Board Power Supply A-1316-367A
KP-61S70 Same as KP-46C70 except for the following Boards RA-3
G Board Power Supply, A-1316-471-A
HV & DY Drives
KP-61S75 A Board Audio, System, A-1298-864-A RA-3A
Tuner, Video &
Reg. Control.
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
G Board Power Supply, A-1316-471-A (Ser. No. 900-)
H/V Output A-1316-498-A (Ser. No. 950-)
10
TV Products Service Bulletin No. 359R7
Model Description Functionally P/N Chassis
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
KP-61V45 Same as KP-41T35 except for the following Boards RA-2
A Board Tuner, AV, YCJ, A-1298-067-A
Audio, V Out
G Board Power Supply. A-1316-314-A
PV Board Comb Filter, PIP A-1190-264-A
KP-61V75 Same as KP-48V75 RA-2A
KP-61V80 Same as KP-53V80 except for the following Board
G Board Power Supply, A-1316-498-A RA-3
HV & DY Drives
KP-61V85 A Board Audio, System, A-1298-843-A RA-3A
Tuner, Video &
Reg. Control.
CB Board Blue Drive A-1331-924-A
CG Board Green Drive A-1331-923-A
CR Board Red Drive A-1331-922-A
G Board Power Supply, A-1316-471-A
H/V Output
HA Board Control Switches A-1372-619-A
HB Board Menu Switches A-1372-620-A
HC Board Remote Sensor A-1372-618-A
S Board Sensor A-1390-933-A
U Board SIRCS A-1373-727-A
KP-61XBR48 Same as KP-53XBR45 except for the following Boards
AA Board Audio, H Out A-1297-622-A RA-1
K Board Audio A-1380-498-A
KP-61XBR200 Same as KP-53XBR200 except for the following Board
D Board Deflection, HV A-1343-476-A RA-4
Reg, DF. Shading
KP-61XBR300 Same as KP-53XBR300 except for the following Board
D Board Deflection, HV A-1343-772-A RA-4A
Reg., DF, Shading
KP-65XBR10W Same as KP-57XBR10W RA-4W
11
TV Products Service Bulletin No. 359R7
KWP-65HD1 is not part of the SAYS program.
But the boards are repaired under the SAYS program.
Model Description Functionally P/N Chassis
KWP-65HD1 A Board Main CPU, AV Sw., A-1298-773-A DR-1
OSD CPU, 3 D
Comb Filter,
Chroma, Tuner,
Video Input, Video
& OSD Processors.
AW Board Auto Wide A-1294-476-A
BD Board Digital Registration A-1131-395-A
BM Board Main/Sub ADC, A-1131-397-A
MID CPU, MID
Controller, PLL
BR Board TBC, A-1131-396-A
UP CONVERTER
A/D CONVERTER
CB Board Blue Drive A-1331-982-A
CG Board Green Drive A-1331-981-A
CR Board Red Drive A-1331-980-A
D Board H/V Def, Sub Def, A-1343-620-A
HV Reg., Shading/
G Board Power Supply A-1316-444-A
GA Board AC Line A-1311-733-A
HA Board Control Switches A-1372-590-A
HB Board Video 2 Input A-1372-592-A
HC Board Remote Sensor A-1372-591-A
K Board Audio Amp, A-1380-573-A
Prologic
UA Board DTV AMP. A-1373-719-A
UB Board SIRCUS In/OUT, A-1373-720-A
Video Input
ZB Board DY/ VM A-1390-960-A
ZG Board DY/ VM A-1390-959-A
ZR Board DY/ VM A-1390-958-A
12
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
