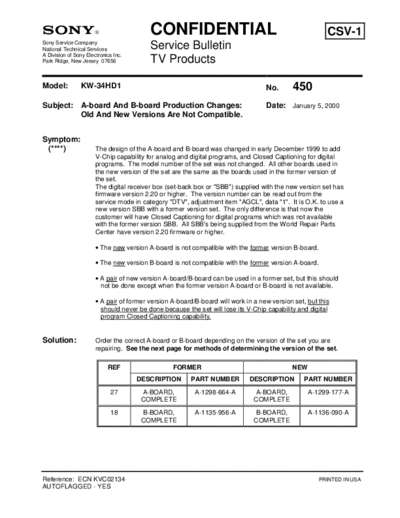

                                          CONFIDENTIAL                                                   CSV-1
Sony Service Company
National Technical Services               Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656              TV Products

Model:          KW-34HD1                                                           No.       450
Subject: A-board And B-board Production Changes:                                   Date: January 5, 2000
         Old And New Versions Are Not Compatible.


Symptom:
 (****)                The design of the A-board and B-board was changed in early December 1999 to add
                       V-Chip capability for analog and digital programs, and Closed Captioning for digital
                       programs. The model number of the set was not changed. All other boards used in
                       the new version of the set are the same as the boards used in the former version of
                       the set.
                       The digital receiver box (set-back box or "SBB") supplied with the new version set has
                       firmware version 2.20 or higher. The version number can be read out from the
                       service mode in category "DTV", adjustment item "AGCL", data "1". It is O.K. to use a
                       new version SBB with a former version set. The only difference is that now the
                       customer will have Closed Captioning for digital programs which was not available
                       with the former version SBB. All SBB's being supplied from the World Repair Parts
                       Center have version 2.20 firmware or higher.
