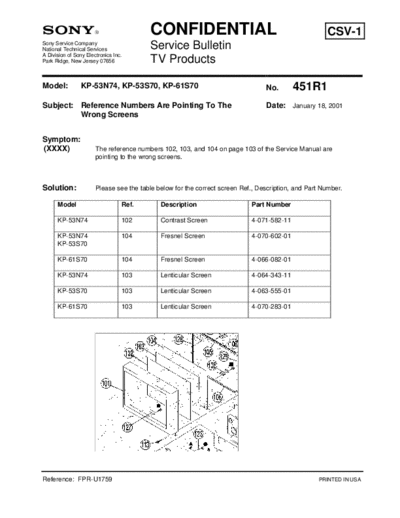

CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KP-53N74, KP-53S70, KP-61S70 No. 451R1
Subject: Reference Numbers Are Pointing To The Date: January 18, 2001
Wrong Screens
Symptom:
(XXXX) The reference numbers 102, 103, and 104 on page 103 of the Service Manual are
pointing to the wrong screens.
Solution: Please see the table below for the correct screen Ref., Description, and Part Number.
Model Ref. Description Part Number
KP-53N74 102 Contrast Screen 4-071-582-11
KP-53N74 104 Fresnel Screen 4-070-602-01
KP-53S70
KP-61S70 104 Fresnel Screen 4-066-082-01
KP-53N74 103 Lenticular Screen 4-064-343-11
KP-53S70 103 Lenticular Screen 4-063-555-01
KP-61S70 103 Lenticular Screen 4-070-283-01
Reference: FPR-U1759 PRINTED IN USA
