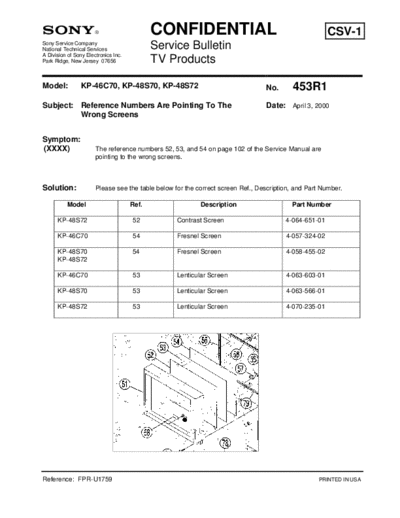

Image preview - the first page of the document
>> Download TVP0453 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KP-46C70, KP-48S70, KP-48S72 No. 453R1
Subject: Reference Numbers Are Pointing To The Date: April 3, 2000
Wrong Screens
Symptom:
(XXXX) The reference numbers 52, 53, and 54 on page 102 of the Service Manual are
pointing to the wrong screens.
Solution: Please see the table below for the correct screen Ref., Description, and Part Number.
Model Ref. Description Part Number
KP-48S72 52 Contrast Screen 4-064-651-01
KP-46C70 54 Fresnel Screen 4-057-324-02
KP-48S70 54 Fresnel Screen 4-058-455-02
KP-48S72
KP-46C70 53 Lenticular Screen 4-063-603-01
KP-48S70 53 Lenticular Screen 4-063-566-01
KP-48S72 53 Lenticular Screen 4-070-235-01
Reference: FPR-U1759 PRINTED IN USA
