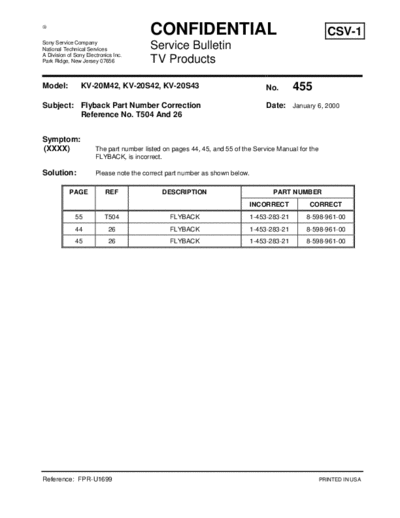

Image preview - the first page of the document
>> Download TVP0455 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KV-20M42, KV-20S42, KV-20S43 No. 455
Subject: Flyback Part Number Correction Date: January 6, 2000
Reference No. T504 And 26
Symptom:
(XXXX) The part number listed on pages 44, 45, and 55 of the Service Manual for the
FLYBACK, is incorrect.
Solution: Please note the correct part number as shown below.
PAGE REF DESCRIPTION PART NUMBER
INCORRECT CORRECT
55 T504 FLYBACK 1-453-283-21 8-598-961-00
44 26 FLYBACK 1-453-283-21 8-598-961-00
45 26 FLYBACK 1-453-283-21 8-598-961-00
Reference: FPR-U1699 PRINTED IN USA
