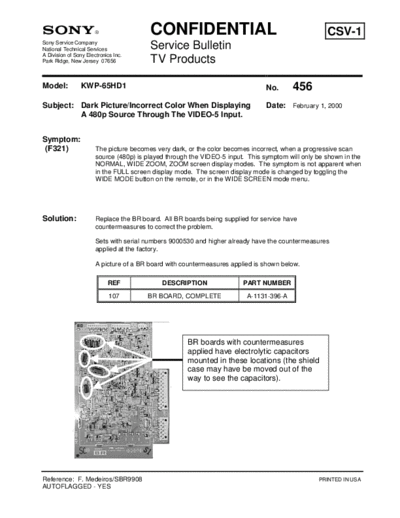

Image preview - the first page of the document



>> Download TVP0456 documenatation <<

Text preview - extract from the document

                                         CONFIDENTIAL                                               CSV-1
Sony Service Company
National Technical Services              Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656             TV Products

Model:          KWP-65HD1                                                       No.      456
Subject: Dark Picture/Incorrect Color When Displaying                           Date: February 1, 2000
         A 480p Source Through The VIDEO-5 Input.


Symptom:
 (F321)                The picture becomes very dark, or the color becomes incorrect, when a progressive scan
                       source (480p) is played through the VIDEO-5 input. This symptom will only be shown in the
                       NORMAL, WIDE ZOOM, ZOOM screen display modes. The symptom is not apparent when
                       in the FULL screen display mode. The screen display mode is changed by toggling the
                       WIDE MODE button on the remote, or in the WIDE SCREEN mode menu.




Solution:              Replace the BR board. All BR boards being supplied for service have
                       countermeasures to correct the problem.

                       Sets with serial numbers 9000530 and higher already have the countermeasures
                       applied at the factory.

                       A picture of a BR board with countermeasures applied is shown below.

                            REF              DESCRIPTION                PART NUMBER
                             107        BR BOARD, COMPLETE               A-1131-396-A




                                                     BR boards with countermeasures
                                                     applied have electrolytic capacitors
                                                     mounted in these locations (the shield
                                                     case may have be moved out of the
                                                     way to see the capacitors).




Reference: F. Medeiros/SBR9908                                                                   PRINTED IN USA
AUTOFLAGGED - YES
