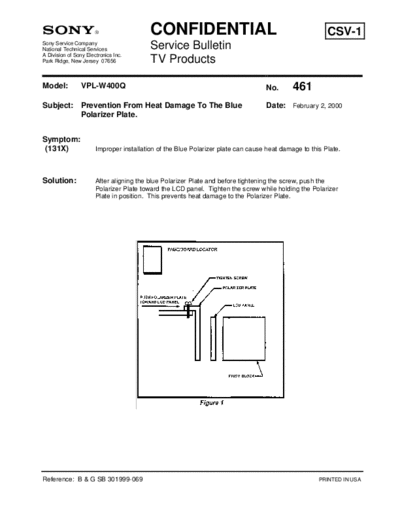

Image preview - the first page of the document



>> Download TVP0461 documenatation <<

Text preview - extract from the document

                                          CONFIDENTIAL                                                  CSV-1
Sony Service Company
National Technical Services               Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656              TV Products

Model:          VPL-W400Q                                                          No.      461
Subject: Prevention From Heat Damage To The Blue                                   Date: February 2, 2000
         Polarizer Plate.


Symptom:
 (131X)                Improper installation of the Blue Polarizer plate can cause heat damage to this Plate.



Solution:              After aligning the blue Polarizer Plate and before tightening the screw, push the
                       Polarizer Plate toward the LCD panel. Tighten the screw while holding the Polarizer
                       Plate in position. This prevents heat damage to the Polarizer Plate.




Reference: B & G SB 301999-069                                                                       PRINTED IN USA
