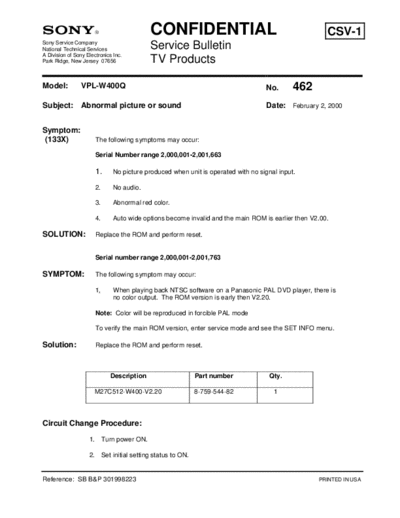

Image preview - the first page of the document



>> Download TVP0462 documenatation <<

Text preview - extract from the document

                                            CONFIDENTIAL                                              CSV-1
Sony Service Company
National Technical Services                 Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656                TV Products

Model:          VPL-W400Q                                                           No.      462
Subject: Abnormal picture or sound                                                  Date: February 2, 2000


Symptom:
 (133X)                The following symptoms may occur:

                       Serial Number range 2,000,001-2,001,663

                       1.      No picture produced when unit is operated with no signal input.

                       2.      No audio.

                       3.      Abnormal red color.

                       4.      Auto wide options become invalid and the main ROM is earlier then V2.00.

SOLUTION:              Replace the ROM and perform reset.


                       Serial number range 2,000,001-2,001,763

SYMPTOM:               The following symptom may occur:

                       1,      When playing back NTSC software on a Panasonic PAL DVD player, there is
                               no color output. The ROM version is early then V2.20.

                       Note: Color will be reproduced in forcible PAL mode

                       To verify the main ROM version, enter service mode and see the SET INFO menu.

Solution:              Replace the ROM and perform reset.



                             Description                   Part number               Qty.

                       M27C512-W400-V2.20                  8-759-544-82               1



Circuit Change Procedure:

                    1. Turn power ON.

                    2. Set initial setting status to ON.


Reference: SB B&P 301998223                                                                        PRINTED IN USA
TV.Products Service Bulletin No. 462


               3. To enter service mode, sequentially press (Enter) (twice), , , (Enter) from control
                  panel or remote controller and follow instructions of each message which appears.

               4. Enter factory mode, sequentially press (Enter) (twice),     , (Enter) and follow
                  instructions of each message that appears.

               5. Enter in Device ADJUST and note values of R-VCOM, G-VCOM, B-VCOM.

               6. Turn power OFF.

               7. Place unit so lens faces you.

               8. Remove right sides shield case on C Board.

               9. Carefully replace IC5205 in main ROM IC socket with new IC.

               10. Assemble unit and turn power ON.

               11. Since user's data H POLARITY/V POLARITY in initial setting (SET SETTING) IS
                   LOST, RESET H POLARITY/VPOLARITY.

               12. Turn power ON and enter service mode and factory mode.

               13. Confirm that main ROM version is V2.20.

               14. Read out factory setting.
                   Enter DEVICE ADJUST (at this moment arrow is present in sub-menu), and press
                   RESET key. Confirm message after reset.

                   Note: DEVICE ADJUST sets COLOR SYS of initial setting (SET SETTING) to
                   forcible NTSC.

                   Set COLOR SYS of initial setting (set SETTING) to: PAL, NTSC4.43, SECM, and
                   forcible PAL-M modes respectively and reset.

               15. Enter DEVICE ADJUST and confirm values are same as those noted in step 5 for
                   R-VCOM, G-VCOM, B-VCOM.

               16. Set COLOR SYS of initial setting (SET SETTING) to AUTO.
