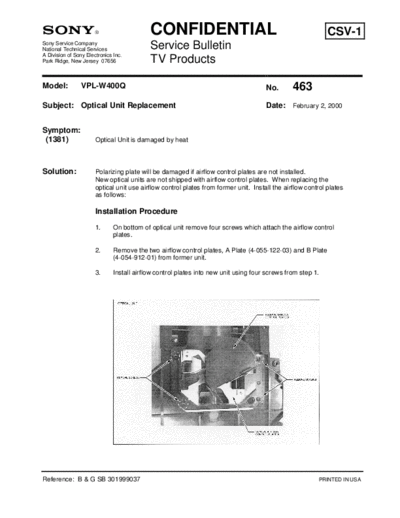

Image preview - the first page of the document



>> Download TVP0463 documenatation <<

Text preview - extract from the document

                                            CONFIDENTIAL                                                     CSV-1
Sony Service Company
National Technical Services                 Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656                TV Products

Model:          VPL-W400Q                                                             No.       463
Subject: Optical Unit Replacement                                                     Date: February 2, 2000


Symptom:
 (1381)                Optical Unit is damaged by heat



Solution:              Polarizing plate will be damaged if airflow control plates are not installed.
                       New optical units are not shipped with airflow control plates. When replacing the
                       optical unit use airflow control plates from former unit. Install the airflow control plates
                       as follows:

                       Installation Procedure

                       1.      On bottom of optical unit remove four screws which attach the airflow control
                               plates.

                       2.      Remove the two airflow control plates, A Plate (4-055-122-03) and B Plate
                               (4-054-912-01) from former unit.

                       3.      Install airflow control plates into new unit using four screws from step 1.




Reference: B & G SB 301999037                                                                             PRINTED IN USA
