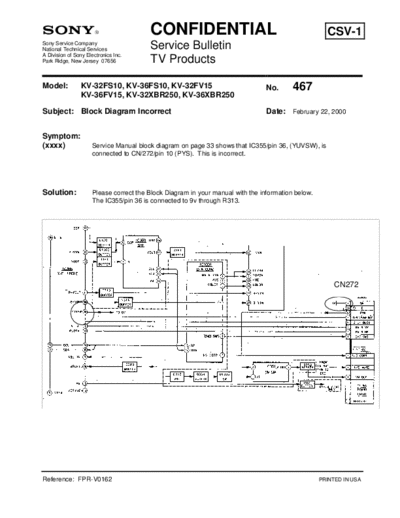

Image preview - the first page of the document



>> Download TVP0467 documenatation <<

Text preview - extract from the document

                                        CONFIDENTIAL                                                 CSV-1
Sony Service Company
National Technical Services             Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656            TV Products

Model:          KV-32FS10, KV-36FS10, KV-32FV15                                 No.      467
                KV-36FV15, KV-32XBR250, KV-36XBR250

Subject: Block Diagram Incorrect                                                Date: February 22, 2000


Symptom:
(xxxx)               Service Manual block diagram on page 33 shows that IC355/pin 36, (YUVSW), is
                     connected to CN/272/pin 10 (PYS). This is incorrect.




Solution:            Please correct the Block Diagram in your manual with the information below.
                     The IC355/pin 36 is connected to 9v through R313.




                                                                                                        CN272




Reference: FPR-V0162                                                                               PRINTED IN USA
