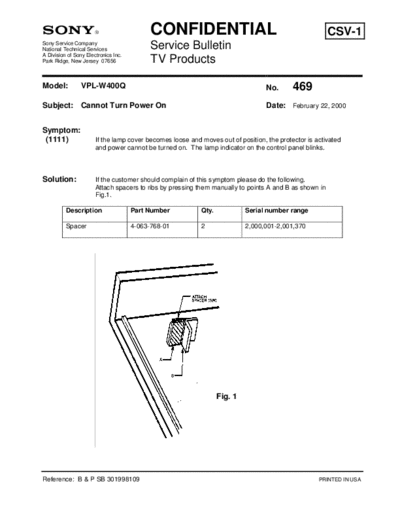

Image preview - the first page of the document



>> Download TVP0469 documenatation <<

Text preview - extract from the document

                                            CONFIDENTIAL                                                CSV-1
Sony Service Company
National Technical Services                 Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656                TV Products

Model:          VPL-W400Q                                                         No.      469
Subject: Cannot Turn Power On                                                     Date: February 22, 2000


Symptom:
 (1111)                If the lamp cover becomes loose and moves out of position, the protector is activated
                       and power cannot be turned on. The lamp indicator on the control panel blinks.



Solution:              If the customer should complain of this symptom please do the following.
                       Attach spacers to ribs by pressing them manually to points A and B as shown in
                       Fig.1.

          Description                 Part Number          Qty.            Serial number range

          Spacer                      4-063-768-01         2               2,000,001-2,001,370




                                                                  Fig. 1




Reference: B & P SB 301998109                                                                       PRINTED IN USA
