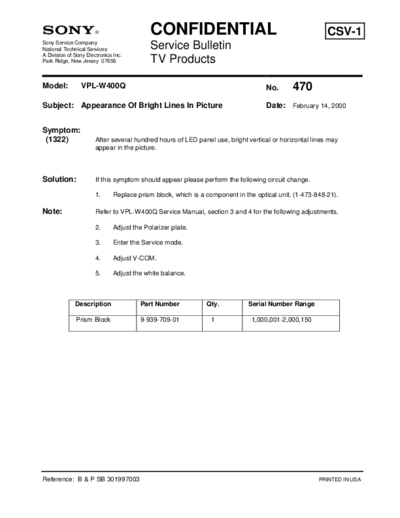

CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: VPL-W400Q No. 470
Subject: Appearance Of Bright Lines In Picture Date: February 14, 2000
Symptom:
(1322) After several hundred hours of LED panel use, bright vertical or horizontal lines may
appear in the picture.
Solution: If this symptom should appear please perform the following circuit change.
1. Replace prism block, which is a component in the optical unit. (1-473-848-21).
Note: Refer to VPL-W400Q Service Manual, section 3 and 4 for the following adjustments.
2. Adjust the Polarizer plate.
3. Enter the Service mode.
4. Adjust V-COM.
5. Adjust the white balance.
Description Part Number Qty. Serial Number Range
Prism Block 9-939-709-01 1 1,000,001-2,000,150
Reference: B & P SB 301997003 PRINTED IN USA
