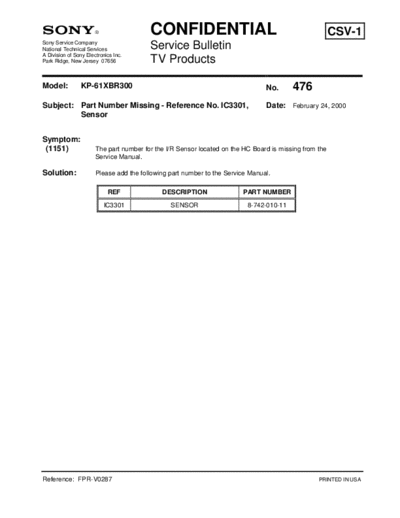

                                         CONFIDENTIAL                                                   CSV-1
Sony Service Company
National Technical Services              Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656             TV Products

Model:          KP-61XBR300                                                     No.      476
Subject: Part Number Missing - Reference No. IC3301,                            Date: February 24, 2000
         Sensor


Symptom:
 (1151)                The part number for the I/R Sensor located on the HC Board is missing from the
                       Service Manual.

Solution:              Please add the following part number to the Service Manual.

                            REF              DESCRIPTION                PART NUMBER
                          IC3301                SENSOR                    8-742-010-11




Reference: FPR-V0287                                                                              PRINTED IN USA
