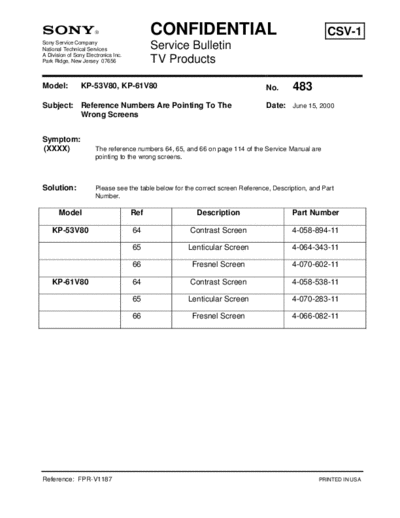

Image preview - the first page of the document
>> Download TVP0483 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KP-53V80, KP-61V80 No. 483
Subject: Reference Numbers Are Pointing To The Date: June 15, 2000
Wrong Screens
Symptom:
(XXXX) The reference numbers 64, 65, and 66 on page 114 of the Service Manual are
pointing to the wrong screens.
Solution: Please see the table below for the correct screen Reference, Description, and Part
Number.
Model Ref Description Part Number
KP-53V80 64 Contrast Screen 4-058-894-11
65 Lenticular Screen 4-064-343-11
66 Fresnel Screen 4-070-602-11
KP-61V80 64 Contrast Screen 4-058-538-11
65 Lenticular Screen 4-070-283-11
66 Fresnel Screen 4-066-082-11
Reference: FPR-V1187 PRINTED IN USA
TV Products Service Bulletin No. 483
