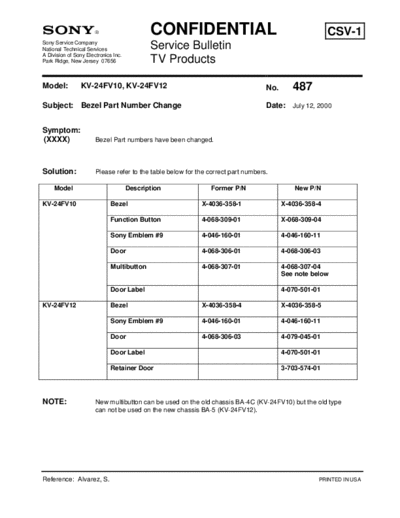

CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KV-24FV10, KV-24FV12 No. 487
Subject: Bezel Part Number Change Date: July 12, 2000
Symptom:
(XXXX) Bezel Part numbers have been changed.
Solution: Please refer to the table below for the correct part numbers.
Model Description Former P/N New P/N
KV-24FV10 Bezel X-4036-358-1 X-4036-358-4
Function Button 4-068-309-01 X-068-309-04
Sony Emblem #9 4-046-160-01 4-046-160-11
Door 4-068-306-01 4-068-306-03
Multibutton 4-068-307-01 4-068-307-04
See note below
Door Label 4-070-501-01
KV-24FV12 Bezel X-4036-358-4 X-4036-358-5
Sony Emblem #9 4-046-160-01 4-046-160-11
Door 4-068-306-03 4-079-045-01
Door Label 4-070-501-01
Retainer Door 3-703-574-01
NOTE: New multibutton can be used on the old chassis BA-4C (KV-24FV10) but the old type
can not be used on the new chassis BA-5 (KV-24FV12).
Reference: Alvarez, S. PRINTED IN USA
