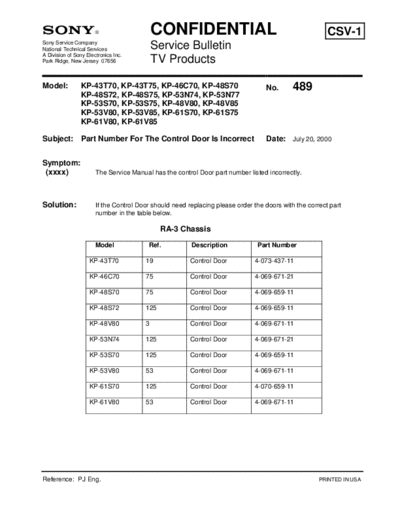

CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KP-43T70, KP-43T75, KP-46C70, KP-48S70 No. 489
KP-48S72, KP-48S75, KP-53N74, KP-53N77
KP-53S70, KP-53S75, KP-48V80, KP-48V85
KP-53V80, KP-53V85, KP-61S70, KP-61S75
KP-61V80, KP-61V85
Subject: Part Number For The Control Door Is Incorrect Date: July 20, 2000
Symptom:
(xxxx) The Service Manual has the control Door part number listed incorrectly.
Solution: If the Control Door should need replacing please order the doors with the correct part
number in the table below.
RA-3 Chassis
Model Ref. Description Part Number
KP-43T70 19 Control Door 4-073-437-11
KP-46C70 75 Control Door 4-069-671-21
KP-48S70 75 Control Door 4-069-659-11
KP-48S72 125 Control Door 4-069-659-11
KP-48V80 3 Control Door 4-069-671-11
KP-53N74 125 Control Door 4-069-671-21
KP-53S70 125 Control Door 4-069-659-11
KP-53V80 53 Control Door 4-069-671-11
KP-61S70 125 Control Door 4-070-659-11
KP-61V80 53 Control Door 4-069-671-11
Reference: PJ Eng. PRINTED IN USA
TVProducts Service Bulletin No. 489
RA-3A Chassis
Model Ref. Description Part Number
KP-43T75 none Control Door 4-073-437-11
KP-48S75 75 Control Door 4-069-659-11
KP-48V85 3 Control Door 4-069-671-21
KP-53N77 125 Control Door 4-069-671-21
KP-53S75 125 Control Door 4-069-659-11
KP-53V85 53 Control Door 4-069-671-21
KP-61S75 125 Control Door 4-069-659-11
KP-61V85 53 Control Door 4-069-671-21
