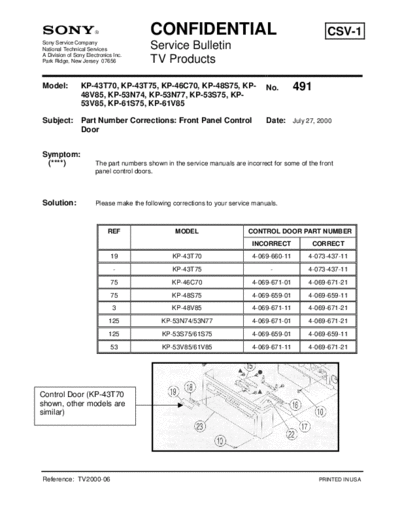

Image preview - the first page of the document
>> Download TVP0491 documenatation <<
Text preview - extract from the document
CONFIDENTIAL CSV-1
Sony Service Company
National Technical Services Service Bulletin
A Division of Sony Electronics Inc.
Park Ridge, New Jersey 07656 TV Products
Model: KP-43T70, KP-43T75, KP-46C70, KP-48S75, KP- No. 491
48V85, KP-53N74, KP-53N77, KP-53S75, KP-
53V85, KP-61S75, KP-61V85
Subject: Part Number Corrections: Front Panel Control Date: July 27, 2000
Door
Symptom:
(****) The part numbers shown in the service manuals are incorrect for some of the front
panel control doors.
Solution: Please make the following corrections to your service manuals.
REF MODEL CONTROL DOOR PART NUMBER
INCORRECT CORRECT
19 KP-43T70 4-069-660-11 4-073-437-11
- KP-43T75 - 4-073-437-11
75 KP-46C70 4-069-671-01 4-069-671-21
75 KP-48S75 4-069-659-01 4-069-659-11
3 KP-48V85 4-069-671-11 4-069-671-21
125 KP-53N74/53N77 4-069-671-01 4-069-671-21
125 KP-53S75/61S75 4-069-659-01 4-069-659-11
53 KP-53V85/61V85 4-069-671-11 4-069-671-21
Control Door (KP-43T70
shown, other models are
similar)
Reference: TV2000-06 PRINTED IN USA
